Mazda RX8 Lock kit by Wisefab has a relocated steering rack for better performance. We have created a custom 7075 aluminium billet U-joint to connect Mazda steering column with the BMW rack. This lock kit has revised kinematics with adjustable Ackermann with custom washers. All the OEM bushings are replaced with spherical bearings for a better and precise handling.
Want to know how does Wisefab Lock kit fit your driftcar check below the link CHECK FITMENT or here!
Scroll down to order your spare parts conveniently right here!
Here is our recommended alignment parameters: Toe in/out: If Ackermann is 0 or negative then toe is 2mm out. If Ackermann is positive then toe is 0 Camber: -4 +/-0,5 Caster: 6 +/-0,5
Suitable for Mazda RX8 and MX5 NC (2005 – 2015) The kit comes with parts to fit a BMW E36 or E46 rack to the subframe. The knuckle has 2 positions for tie rod attachment: for original rack position and for a lowered position. For lowered position it has also some adjustability in case someone has already lowered the rack and it doesn't match with our designed height.
65 degrees of lock, parallel steering You can tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up the alignment. The Ackermann adjustment kit is included.
Adjustable lock stopper
Higher roll center (RC) On Wisefab knuckles, both joints are dropped, which brings the front RC up on a lowered car, providing higher roll stiffness, good camber control and minimal bump steer with high steering angles. With our kinematics we have assured that the camber will provide very good front grip and bump steer is minimal throughout the steering range.
Steering jacking control During drifting, when steering angle is increased, jacking is also bigger, even with the same geometry it could become a problem. We have changed the geometry in a way that doesn't cause any handling issues.
Consistent and predictable self-alignment torque Caster is not the only important parameter to provide sufficient self-alignment torque, especially at high lock. It's the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn't get stuck at full lock.

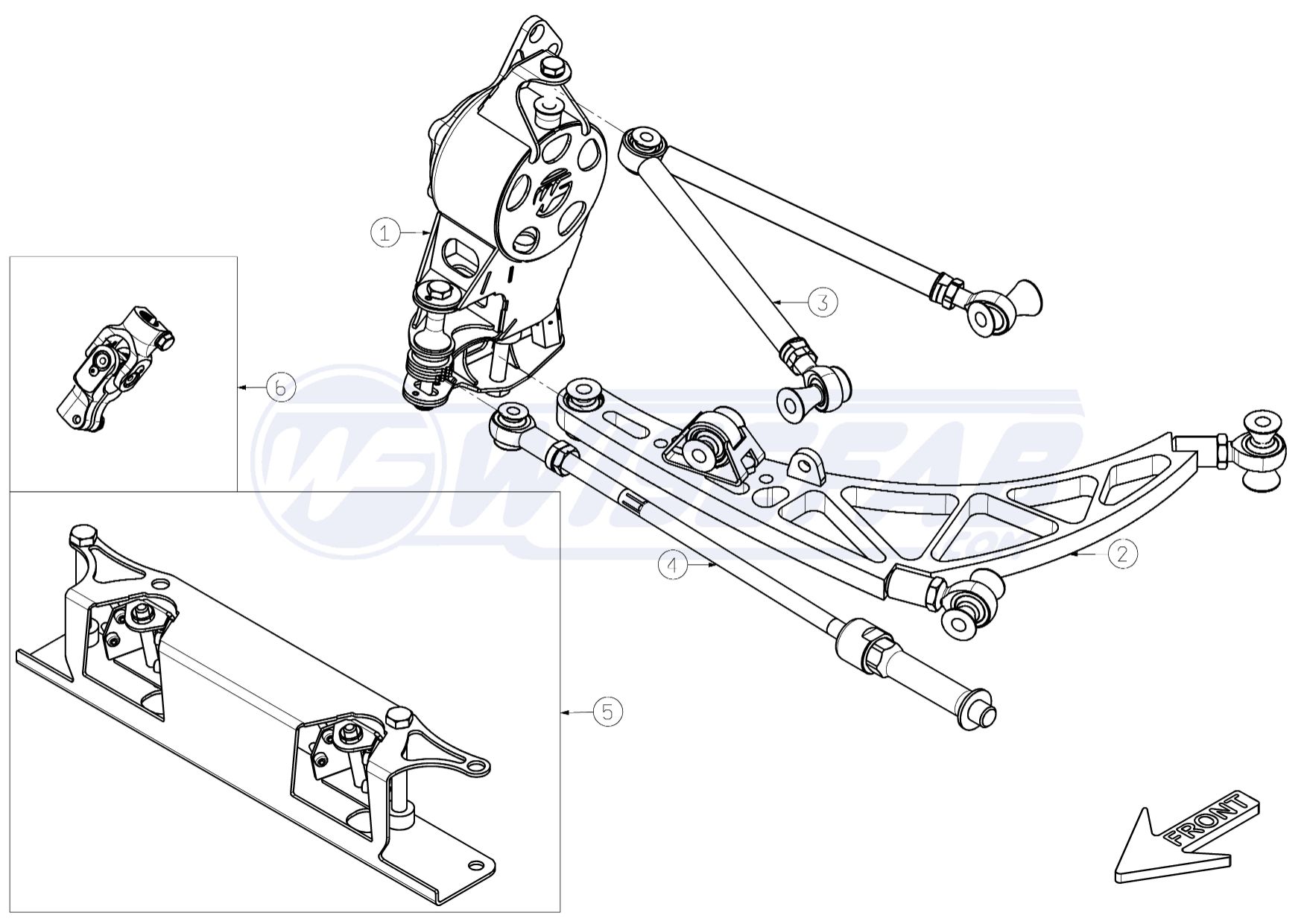

Kit includes:
Upper and lower control arms
Knuckles with hardware
Assembeled tie rods
Rack relocating kit
Installation guide
Other information:
This kit assumes coilovers for enough clearance
Ride height is designed to be ~80mm when measured from the subframe to the ground
Dependent on rim width and ET, widened fenders or flares will be needed
Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc)
Minimum rim size is 17"
Recommended backspacing is ~135mm (7" ET45; 8" ET35; 9" ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used
Original wheelspeed sensor (ABS sensor) can be used
This calculator is fixed with the values specific to this particular product, car make and model. Full fitment calculator can be accessed here
Fender Arch Height from Ground (mm)
Tire Width
Tire Height or Diameter
Rim Diameter
Rim Width
ET
Wheelspacer (mm)
Suspension selection
Suspension selection
OEM
WISEFAB
CUSTOM
1770 mm
1770 mm
Fender to Fender
1590 mm
1762 mm
Hub to Hub
0 °
-4 °
Camber
6 °
6 °
Caster
-1 mm
-2 mm
Toe
Set your desired rim and tire parameters in our fitment calculator to have a better overview how Wisefab will transform your driftcar. Fender arch height is your indicator on ride height. Check the fitment and learn about missing fender gap before ordering widebody kit. In the custom section you can edit the fender to fender and wheelhub to wheelhub measurments according to your driftcar. Use the max width to check if your car will fit on your trailer. Have fun with this fitment calculator.
