BMW E46 E46M Front Long Trail Drift Angle Lock Kit V2

$1,680.00
excluding VAT
In stock
SKU
WF4601
or View Spares

The "long trail" version of V2 has more agressive knuckle add-on design that offers more "jacking" and even faster self-steer. However this setup makes the car snappier and a little less predictable, which in turn requires top level driving skill and ability to adapt to a new setup. Other than that the "long trail" version of V2 has the same fearures as "standard trail" V2 such as the ability to adjust the ackermann angle (from the knuckle add-on) and also the caster (from the top mount). These new features make adjustment convenient and handy.

NB! The V2 kit is suitable for both standard models and M3.

Want to know how does Wisefab Lock kit fits your driftcar check below the link CHECK FITMENT or here!

For the rear we are offering the full solution as well including the unique design trailing arms, lower links and V2 upper links

Scroll down to order your spare parts conviently right here!

Here is our recommended alignment parameters:
Toe in/out: 0
Camber: -5
Caster: 4,5

  • Higher roll center
    Wisefab suspension kit brings the front roll center up on lowered cars, providing higher roll stiffness.
  • Revised steering geometry (trail and Ackermann)
    You could tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.
  • Good camber control with high steering angles
    With high steering angles the leading wheel will have a positive camber, which is not a positive effect. It reduces the front grip and during turn or flip it creates a contact patch transition from inside edge to outside edge. It is not possible to eliminate it, but with our geometry it has decreased as much as possible.
  • Steering jacking control
    During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have monitored it and changed the geometry that it doesn’t cause any handling issues.
  • Predictable self-alignment control
    With certain suspension geometry at high steering angles it could happen that the steering wheel is locking up at the end and driver needs to apply some force to flip it to other side. We know what causes it and have decreased it to minimum, if not eliminated it.
  • Adjustable lock-stopper.
  • Stronger inner ball joint design over OEM and older Wisefab version.

Kit includes:

  • Adjustable coilover upper mounts, Formula Drift compliance.
  • Hub add-ons with Ackermann adjustment hardware.
  • Lightweight lower control arms.
  • Assembeled tie rods.
  • Adjustable lower control arm rear mount.
  • Installation guide

Other components, packaging and clearance.

  • This kit assumes coilovers to have enough clearance.
  • We recommend tire diameter not bigger than 645mm (235/40 R18).
  • Wider fenders or fender flares needed with this kit.
More Information
Make BMW
Field Drift
Placement Front
Prodmaster Name Long Trail Drift Angle Lock Kit V2

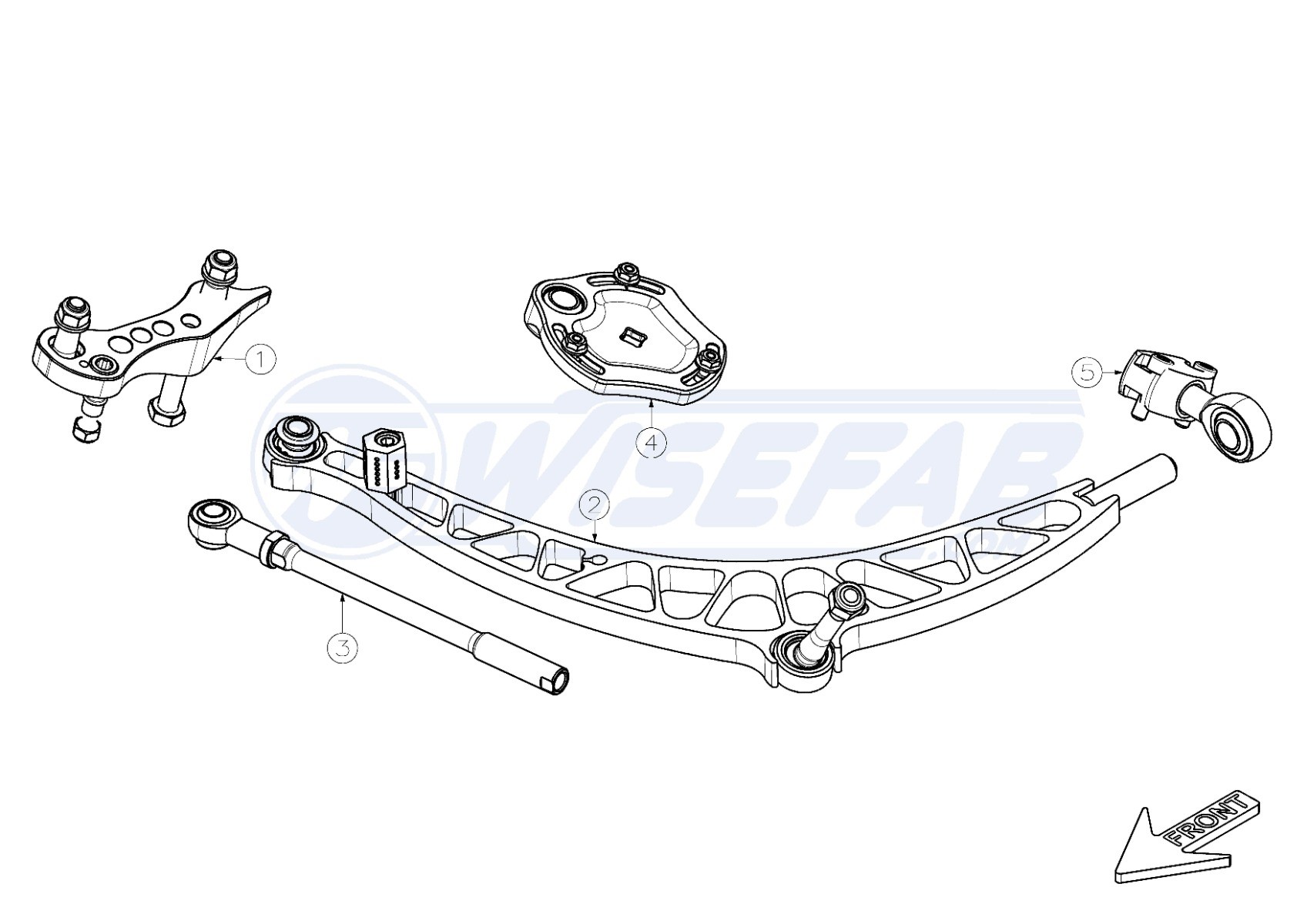

Spare parts

All
Complete parts
Left Lower Control Arm
Right Lower Control Arm
Tierod Assembly
Top Mount
Lower Control Arm Mount V2

Complete parts

Complete parts

2
Lower Control Arm
Left
WF036_200LA
$440.00
excluding VAT
Right
WF036_200RA
$440.00
excluding VAT
3
Tierod Assembly
WF360_600A
$120.00
excluding VAT
4
Top Mount
WF360_500A
$155.00
excluding VAT
5
Lower Control Arm Mount V2
WF460_210A
$100.00
excluding VAT

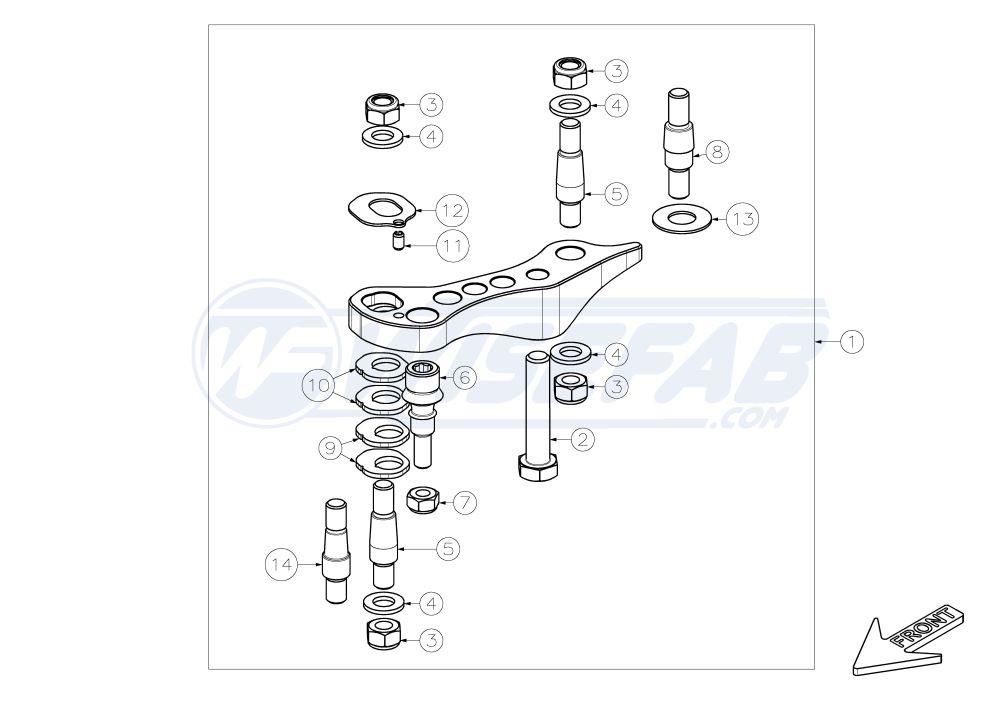

Left Lower Control Arm

Left Lower Control Arm

1
Lower Control Arm
Left
WF036_200LA
$440.00
excluding VAT
2
Bolt Allen M12x1.50x 12.5 RH 12.9 ZN
WF036_911
$29.00
excluding VAT
3
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF036_913
$28.00
excluding VAT
4
Bolt Allen M10x1.5x 55 RH 8.8 ZN DIN 912
B01210150055R2ZD912
$2.10
excluding VAT
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$2.10
excluding VAT
6
Spacer ID14 OD16 h10 SPC
WF036_908
$12.00
excluding VAT
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$2.10
excluding VAT
8
Spherical ID16/OD32
SSPHERICAL 16/32
$35.00
excluding VAT
9
Spacer ID14 OD16 h10
WF036_903
$12.00
excluding VAT
10
Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
$2.10
excluding VAT
11
Control Arm Inner Joint Shaft V2
WF036_920
$30.00
excluding VAT

Right Lower Control Arm

Right Lower Control Arm

1
Lower Control Arm
Right
WF036_200RA
$440.00
excluding VAT
2
Bolt Allen M12x1.50x 12.5 RH 12.9 ZN
WF036_911
$29.00
excluding VAT
3
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF036_913
$28.00
excluding VAT
4
Bolt Allen M10x1.5x 55 RH 8.8 ZN DIN 912
B01210150055R2ZD912
$2.10
excluding VAT
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$2.10
excluding VAT
6
Spacer ID14 OD16 h10 SPC
WF036_908
$12.00
excluding VAT
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$2.10
excluding VAT
8
Spherical ID16/OD32
SSPHERICAL 16/32
$35.00
excluding VAT
9
Spacer ID14 OD16 h10
WF036_903
$12.00
excluding VAT
10
Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
$2.10
excluding VAT
11
Control Arm Inner Joint Shaft V2
WF036_920
$30.00
excluding VAT

Tierod Assembly

Tierod Assembly

1
Tierod Assembly
WF360_600A
$120.00
excluding VAT
2
Tie Rod Extension
WF036_904
$45.00
excluding VAT
3
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
$36.00
excluding VAT
4
Spacer ID10 OD14 h 5.4
WF080_921
$10.00
excluding VAT

Top Mount

Top Mount

1
Top Mount
WF360_500A
$155.00
excluding VAT
2
Spherical ID18/OD35
SSPHERICAL 18/35
$36.00
excluding VAT
3
C-Clip InternalSTD d35 ST DIN472
B04135SD472
$2.10
excluding VAT
4
Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
B01108125016R2ZD933
$2.10
excluding VAT
5
Nut Hex Flange M 8x1.25 RH 8.8 ZN
B02508125R2ZD69238
$2.10
excluding VAT

Lower Control Arm Mount V2

Lower Control Arm Mount V2

1
Lower Control Arm Mount V2
WF460_210A
$100.00
excluding VAT
2
Rod end 20x1.5 RH male CrMo
SRODEND 20X1.5 RH M
$45.00
excluding VAT
4
Bolt Allen M10x1.5x 40 RH 10.9 ZN DIN 912
B01210150040R3ZD912
$2.10
excluding VAT
