BMW E36 Front Drift Angle Lock Kit

$1,290.00
excluding VAT
In stock
SKU
WF036
or View Spares

Wisefab BMW E36 angle kit has over 60 degrees of usable lock. Light and strong lower control arms. Adjustable top mounts. Very easy to install. Set your desired toe in and enjoy. All the parts on the lock kit are provided as spare parts.

Want to know how does Wisefab Lock kit fits your driftcar check below the link CHECK FITMENT or here!

For the rear we have an upper link and a lower link these will allow to set up your car for better traction(Upper arm will replace the spring carrier arm). We also offer you the trailarm bushings



Scroll down to order your spare parts conviently right here!

Here is our recommended alignment parameters:
Toe in/out: 0
Camber: -5
Caster: 4,5

Read full description
  • Higher roll center
    Wisefab suspension kit brings the front roll center up on lowered cars, providing higher roll stiffness and letting to remove the front anti roll bar (swaybar) enabling maximum usable lock.
  • Revised steering geometry (Ackermann)
    Normally in a corner the inner wheel has a greater angle than the outer. For drifting this means loss of speed and grip and we have correted this for best performance.
  • Good camber control with high steering angles
    With high steering angles the leading wheel will have a positive camber, which is not a positive effect. It reduces the front grip and during turn or flip it creates a contact patch transition from inside edge to outside edge. It is not possible to eliminate it, but with our geometry it has decreased as much as possible.
  • Steering jacking control
    During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have monitored it and changed the geometry that it doesn’t cause any handling issues.
  • Predictable self-alignment control
    With certain suspension geometry at high steering angles it could happen that the steering wheel is locking up at the end and driver needs to apply some force to flip it to other side. We know what causes it and have decreased it to minimum, if not eliminated it.
  • Adjustable lock-stopper.
  • Stronger inner ball joint design over OEM and older Wisefab version.

Kit includes:

  • Adjustable coilover upper mounts, Formula Drift compliance.
  • Hub add-ons with hardware.
  • Lightweight lower control arms.
  • Assembeled tie rods.
  • Adjustable lower control arm rear mount.
  • Installation guide

Other components, packaging and clearance.

  • This kit assumes coilovers to have enough clearance.
  • We recommend tire diameter not bigger than 620mm (235/40 R17).
  • Wider fenders or fender flares needed with this kit.
More Information
Make BMW
Field Drift
Placement Front
Prodmaster Name Drift Angle Lock Kit
Wisefab fitment calculator
Make and Model
?
Fender Arch Height from Ground (mm)
Tire Width
Tire Height or Diameter
Rim Diameter
Rim Width
ET
Wheelspacer (mm)
Suspension selection
Suspension selection
OEM
WISEFAB
CUSTOM

1690 mm
1690 mm
Fender to Fender
1512 mm
1680 mm
Hub to Hub
-1 °
-5 °
Camber
4 °
4 °
Caster
-1 mm
-2 mm
Toe
Wisefab Nissan 240sx
"’We started working together with Wisefab back in 2014 when we launched our Falken Tyres Nissan 240sx for European competition. Since then, we have enjoyed working closely with the engineers at Wisefab testing new products before going into production and have had a lot of success winning multiple championship worldwide. Thank you to everyone at Wisefab for believing in us and producing such top-quality products."
Nissan 240sx Drift
“When I first installed a Wisefab lock kit it truly opened the door for some more aggressive driving style. I quickly began to expect nothing less than the massive angle and performance that Wisefab provides and installed a lock kit on all (4) of my Nissan 240sx that I currently drift. Also, after testing what I though was a very competitive rear suspension solution against the latest Wisefab rear kit, I was blown away with the apparent grip gain the rear Wisefab kit yielded. I am so thankful that Wisefab has poured so much effort into creating a bolt on suspension solution that transforms a Nissan 240sx into what I believe is still the most competitive drift chassis in the world."
Nissan 240sx Lock kit
"I love the Wisefab suspension kits used on my competition and demo vehicles, they provide all the angle and grip we love along with the strength and durability we need to compete with the best!"
Toyota 86 Drift
"I wouldn't have half the results! Only by running Wisefab in my Toyota 86 it just makes the car handle so good and let's me adjust set up pretty easy which is a massive help going from track to track!"

Spare parts

All
Complete parts
Left Knuckle Add-on
Right Knuckle Add-on
Left Lower Control Arm
Right Lower Control Arm
Tierod Assembly
Top Mount
Right Lower Control Arm Mount
Left Lower Control Arm Mount

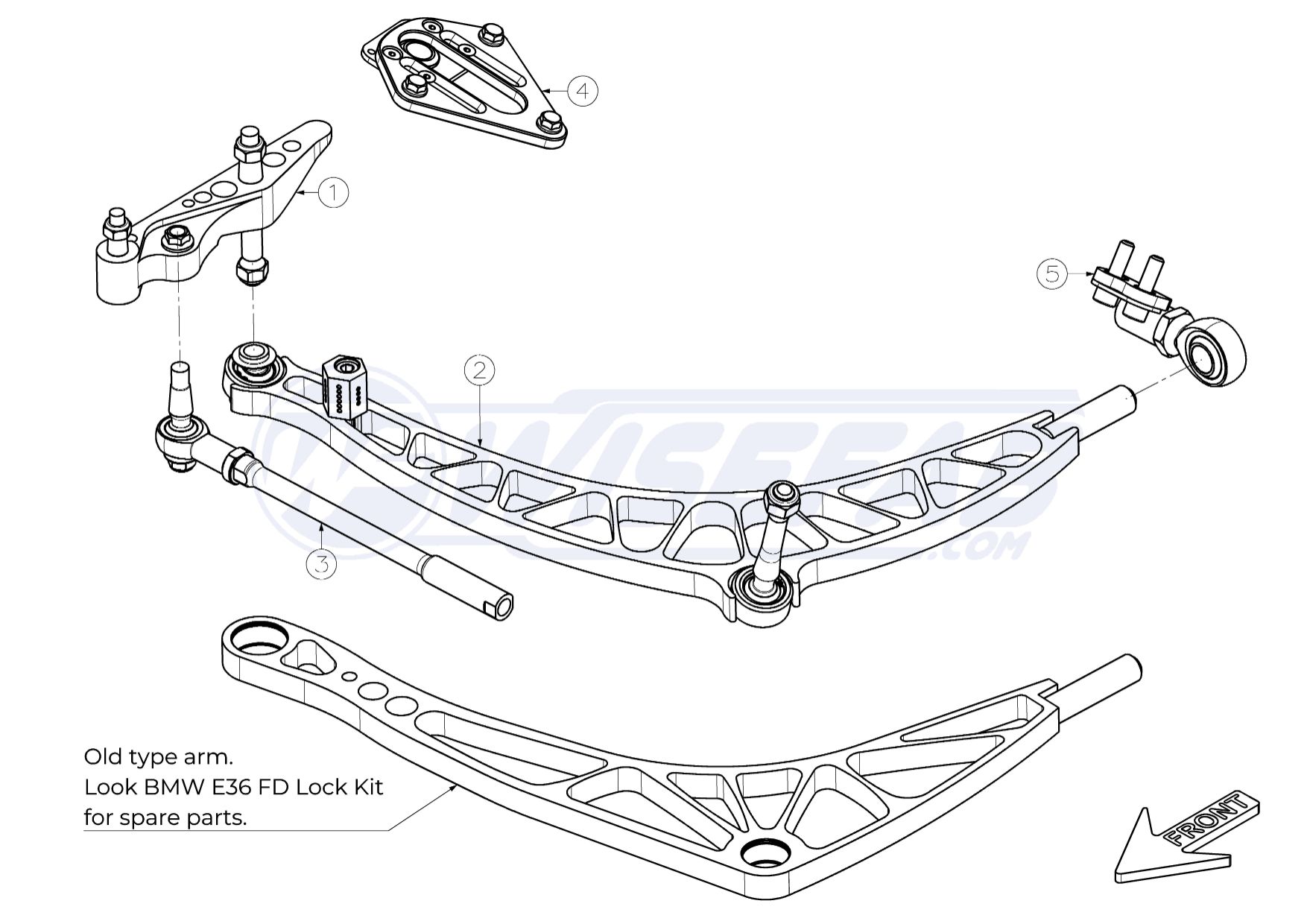

Complete parts

Complete parts

1
Knuckle Add-on
Left
WF036_100LA
$265.00
excluding VAT
Right
WF036_100RA
$265.00
excluding VAT
2
Lower Control Arm
Left
WF036_200LA
$390.00
excluding VAT
Right
WF036_200RA
$390.00
excluding VAT
3
Tierod Assembly
WF036_600A
$105.00
excluding VAT
4
Top Mount
WF036_500A
$130.00
excluding VAT
5
Lower Control Arm Mount
Right
WF536_100RA
$95.00
excluding VAT
6
Lower Control Arm Mount
Left
WF536_100LA
$95.00
excluding VAT

Left Knuckle Add-on

Left Knuckle Add-on

1
Knuckle Add-on
Left
WF036_100LA
$265.00
excluding VAT
2
Conical Bolt D16.4 L125
WF036_901
$26.00
excluding VAT
3
Conical Bolt D14 L60
WF036_902
$14.00
excluding VAT
4
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
$1.90
excluding VAT
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$1.90
excluding VAT
6
Nut Hex Flange M10x1.5 RH 8.8 ZN
B02510150R2ZD69238
$3.50
excluding VAT

Right Knuckle Add-on

Right Knuckle Add-on

1
Knuckle Add-on
Right
WF036_100RA
$265.00
excluding VAT
2
Conical Bolt D16.4 L125
WF036_901
$26.00
excluding VAT
3
Conical Bolt D14 L60
WF036_902
$14.00
excluding VAT
4
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
$1.90
excluding VAT
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$1.90
excluding VAT
6
Nut Hex Flange M10x1.5 RH 8.8 ZN
B02510150R2ZD69238
$3.50
excluding VAT

Left Lower Control Arm

Left Lower Control Arm

1
Lower Control Arm
Left
WF036_200LA
$390.00
excluding VAT
2
Bolt Allen M12x1.50x 12.5 RH 12.9 ZN
WF036_911
$25.00
excluding VAT
3
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF036_913
$24.00
excluding VAT
4
Bolt Allen M10x1.5x 55 RH 8.8 ZN DIN 912
B01210150055R2ZD912
$1.90
excluding VAT
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$1.90
excluding VAT
6
Spacer ID14 OD16 h10 SPC
WF036_908
$11.00
excluding VAT
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$1.90
excluding VAT
8
Spherical ID16/OD32
SSPHERICAL 16/32
$31.00
excluding VAT
9
Spacer ID14 OD16 h10
WF036_903
$11.00
excluding VAT
10
Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
$1.90
excluding VAT
11
Control Arm Inner Joint Shaft V2
WF036_920
$26.00
excluding VAT

Right Lower Control Arm

Right Lower Control Arm

1
Lower Control Arm
Right
WF036_200RA
$390.00
excluding VAT
2
Bolt Allen M12x1.50x 12.5 RH 12.9 ZN
WF036_911
$25.00
excluding VAT
3
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF036_913
$24.00
excluding VAT
4
Bolt Allen M10x1.5x 55 RH 8.8 ZN DIN 912
B01210150055R2ZD912
$1.90
excluding VAT
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$1.90
excluding VAT
6
Spacer ID14 OD16 h10 SPC
WF036_908
$11.00
excluding VAT
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$1.90
excluding VAT
8
Spherical ID16/OD32
SSPHERICAL 16/32
$31.00
excluding VAT
9
Spacer ID14 OD16 h10
WF036_903
$11.00
excluding VAT
10
Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
$1.90
excluding VAT
11
Control Arm Inner Joint Shaft V2
WF036_920
$26.00
excluding VAT

Tierod Assembly

Tierod Assembly

1
Tierod Assembly
WF036_600A
$105.00
excluding VAT
2
Tie Rod Extension
WF036_904
$39.00
excluding VAT
3
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
$33.00
excluding VAT
4
Nut Collar M12x1.50 RH ZN SPC
WF001_12X15
$11.00
excluding VAT
5
Conical Bolt D16.4 L66
WF036_909
$19.00
excluding VAT
6
Spacer ID10 OD14 h 5.4
WF080_921
$9.10
excluding VAT
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$1.90
excluding VAT

Top Mount

Top Mount

1
Top Mount
WF036_500A
$130.00
excluding VAT
2
Camber Plate Spherical Housing REG
WF013_917A
$65.00
excluding VAT
3
Bolt HexFlange M 8x1.25x 10 RH 10.9 ZN DIN6921
B01608125010R2ZD6921
$3.50
excluding VAT
4
Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
B01306100016R2SD7991
$1.90
excluding VAT

Right Lower Control Arm Mount

Right Lower Control Arm Mount

1
Lower Control Arm Mount
Right
WF536_100RA
$95.00
excluding VAT
2
Rod end 20x1.5 RH male CrMo
SRODEND 20X1.5 RH M
$39.00
excluding VAT
3
Nut Thin M20x1.5 RH 8.8 ZN DIN936/439
B02320150R2ZD936/439
$3.50
excluding VAT
4
Lower Control Arm Mount Washer
WF536_102
$7.90
excluding VAT
5
Bolt Allen M10x1.5x 40 RH 10.9 ZN DIN 912
B01210150040R3ZD912
$1.90
excluding VAT

Left Lower Control Arm Mount

Left Lower Control Arm Mount

1
Lower Control Arm Mount
Left
WF536_100LA
$95.00
excluding VAT
2
Rod end 20x1.5 RH male CrMo
SRODEND 20X1.5 RH M
$39.00
excluding VAT
3
Nut Thin M20x1.5 RH 8.8 ZN DIN936/439
B02320150R2ZD936/439
$3.50
excluding VAT
4
Lower Control Arm Mount Washer
WF536_102
$7.90
excluding VAT
5
Bolt Allen M10x1.5x 40 RH 10.9 ZN DIN 912
B01210150040R3ZD912
$1.90
excluding VAT
