Scion FRS Rear Suspension Drop Knuckle Kit
$3,100.00
excluding VAT
In stock
SKU
WF861
Toyota GT86 / Subaru BRZ / Scion FRS is a well designed car for enthusiast drivers. The car performs well on the streets and can be driven fast on a race track. If the focus is more towards performance, then the car will drive even better with lowered ride height, but then the factory designed kinematics won’t work as they are supposed to. Wisefab suspension kit brings the roll center, bumpsteer, anti-squat and camber curve back to normal range, provides better roll stiffness, handling and grip.
Check out the front suspension kit for the Scion FRS
Scroll down for convenient spare part order.
- -7 kg of combined weight saving over original components
But still maintaining required strength and stiffness - 7075-T6 aluminium billet CNC knuckles
With optimized double shear design that provides low weight and high strenght - All the rear links and arms are made of high strength steel
CrMo rod ends and sphericals used instead of rubber bushings - Adjustable shock motion ratio
Shock motion ratio can be adjusted by changing the shocks position on the arm. It can be done quickly and has the effect of changing the springrate. This means that understeer or oversteer can be removed within a few minutes - Easy camber adjustment
Camber shims are used for adjustment - Bump steer adjustment
Possibility to adjust bumpsteer by changing washer locations
Kit includes:
- Pre-set suspension arms
- Knuckles with hardware
- Camber adjustment shims
- Installation guide
Other information:
- Track is the same as original, as this is defined by halfshaft lengths
- This kit assumes coilovers
- Original wheel speed sensor can be used
- Possibility to use Nissan S-Chassis hub with bigger CV joint
- Minimum rim size is 17“
| Make | Scion |
|---|---|
| Field | Drift |
| Placement | Rear |
| Prodmaster Name | Suspension Drop Knuckle Kit |

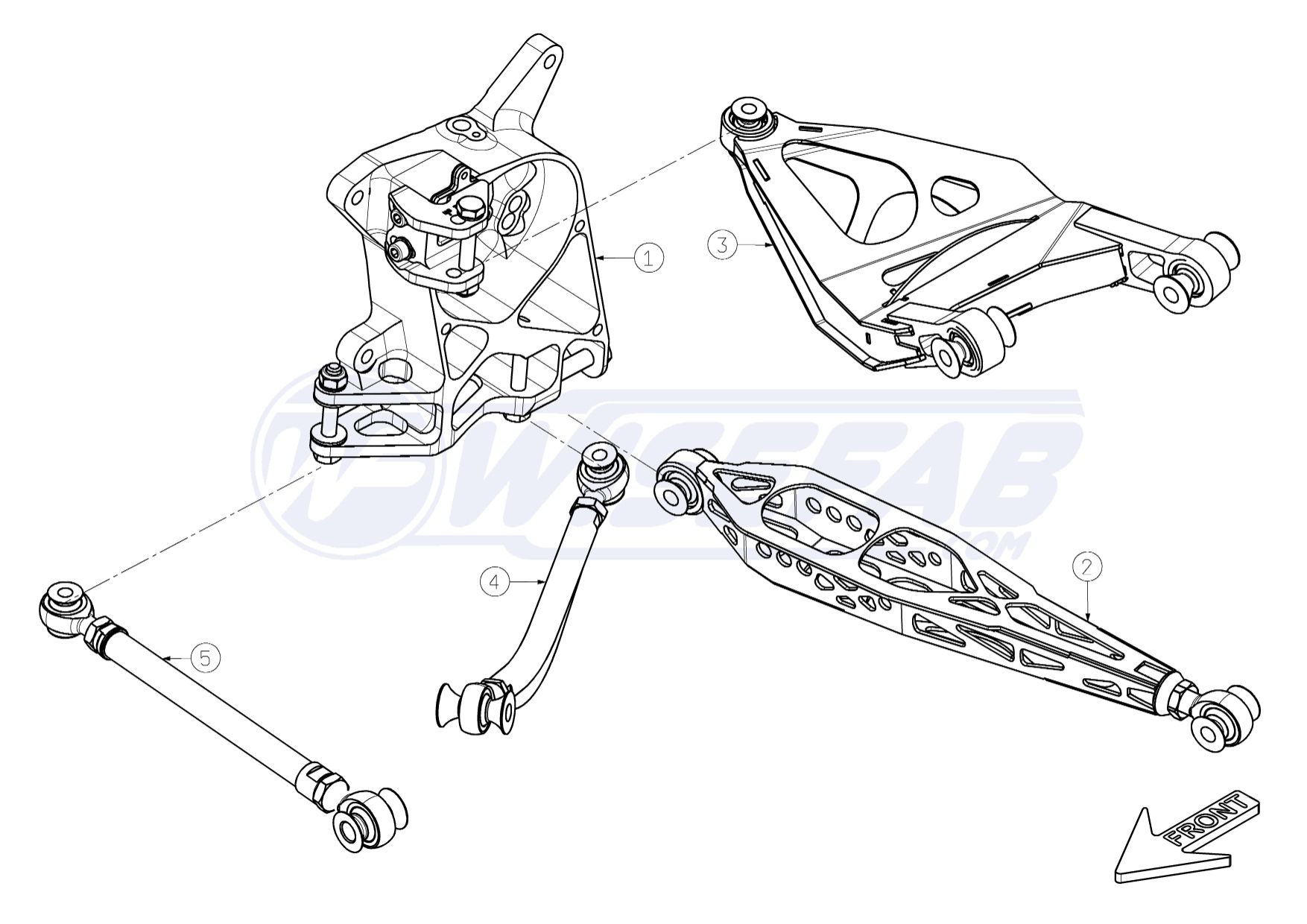

Spare parts
All
Complete parts
Left Knuckle
Right Knuckle
Suspension Arm #2
Right Suspension Arm #3
Left Suspension Arm #3
Suspension Arm #4
Suspension Arm #5
Complete parts
Complete parts
2
Suspension Arm #2
3
Suspension Arm #3
4
Suspension Arm #4
5
Suspension Arm #5
Left Knuckle
Left Knuckle
1
Knuckle
2
Knuckle Clevis
3
Hub Spacer Plate
5
Washer FlatSmall M10 ZN DIN433
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
7
Bolt Allen M 8x1.25x 30 RH 12.9 ST DIN 912
8
Washer Flat M 8 ZN DIN125
9
Camber Adjustment Shim 1mm
10
Camber Adjustment Shim 2mm
11
Camber Adjustment Shim 3mm
12
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
13
Washer FlatSmall M12 ZN DIN433
14
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
15
Washer ID10 OD24.5 h 1
16
Washer ID10 OD24.5 h 2
18
Bolt Allen M 8x1.25x 25 RH 12.9 ST DIN 912
Right Knuckle
Right Knuckle
1
Knuckle
2
Knuckle Clevis
3
Hub Spacer Plate
5
Washer FlatSmall M10 ZN DIN433
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
7
Bolt Allen M 8x1.25x 30 RH 12.9 ST DIN 912
8
Washer Flat M 8 ZN DIN125
9
Camber Adjustment Shim 1mm
10
Camber Adjustment Shim 2mm
11
Camber Adjustment Shim 3mm
12
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
13
Washer FlatSmall M12 ZN DIN433
14
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
15
Washer ID10 OD24.5 h 1
16
Washer ID10 OD24.5 h 2
18
Bolt Allen M 8x1.25x 25 RH 12.9 ST DIN 912
Suspension Arm #2
Suspension Arm #2
1
Suspension Arm #2
2
Spacer ID12 OD16 h10
3
Rod end 16x1.5 RH male CrMo
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
5
C-Clip InternalSTD d32 ST DIN472
6
Spherical ID16/OD32
Right Suspension Arm #3
Right Suspension Arm #3
1
Suspension Arm #3
2
Spacer ID12 OD16 h19
3
Spherical ID16/OD32
4
C-Clip InternalSTD d32 ST DIN472
5
Spacer ID12 OD16 h14.5
6
Spacer ID10 OD12 h10.5
7
C-Clip InternalSTD d26 ST DIN472
8
Spherical ID12/OD26
Left Suspension Arm #3
Left Suspension Arm #3
1
Suspension Arm #3
2
Spacer ID12 OD16 h19
3
Spherical ID16/OD32
4
C-Clip InternalSTD d32 ST DIN472
5
Spacer ID12 OD16 h14.5
6
Spacer ID10 OD12 h10.5
7
C-Clip InternalSTD d26 ST DIN472
8
Spherical ID12/OD26
Suspension Arm #4
Suspension Arm #4
1
Suspension Arm #4
2
Spacer ID12 OD16 h13.5
3
C-Clip InternalSTD d32 ST DIN472
4
Spherical ID16/OD32
5
Spacer ID10 OD14 h 9
6
Rod end 14x1.5 LH male CrMo
7
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
Suspension Arm #5
Suspension Arm #5
1
Suspension Arm #5
2
Spacer ID14 OD16 h10
3
Rod end 16x1.5 RH male CrMo
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
5
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
6
Spacer ID10 OD14 h 5.4
7
Rod end 14x1.5 LH male CrMo
