Nissan S14 S15 Front V2 Drift Angle Lock Kit with Rack Offset Spacers

Special Price $1,620.00 Regular Price $1,800.00
excluding VAT
In stock
SKU
WF140 OFF
or View Spares

Wisefab Nissan S14 angle kit with rack offset spacers has two major upgrades. The knuckle has been designed to allow more suspension travel with the trending long stroke coilovers. Lower control arm has been redesigned for more convenient alignment setup. The result was more grip at the front and more precise steering. This will give you the competitive edge. All the parts in the Nissan S14 angle kit are provided as spare parts.

S13 kit is for the 4 lug spindle, if you have 5 lug on your S13 please select the Nissan S13 Angle kit with rack offset spacers

Want to know how does Wisefab Lock kit fits your driftcar check below the link CHECK FITMENT or here!

Check out the Nissan S14 Rear Suspension kit.

Scroll down to order your spare parts conviently right here!

Here is our recommended alignment parameters:
Toe in/out: If Ackermann is 0 or negative then toe is 2mm out. If Ackermann is positive then toe is 0
Camber: -4 +/-0,5
Caster: 3,5 +/-0,5

Read full description
  • More usable lock.
    65+ degrees of lock, better feel and precise handling. You could tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.
    Ackermann adjustment kit included.
  • Less sensitive steering.
    Increased steering ratio for smooth handling.
  • More suspension travel.
    Less interference risk at full droop. Longstroke coilover kits can be used.
  • Lighter and stronger.
    Optimized design in combination with high strenght steel is used.
  • Higher roll center (RC).
    On Wisefab knuckle, the ball joint is lowered 60mm, which brings the front RC up on lowered car, providing higher roll stiffness and letting to remove the front anti roll bar (sway bar) that is quite difficult to package with that high lock angles.
  • Adjustable camber and caster with adjustable doubleplates.
  • Adjustable lock stopper.
  • One piece lower control arm desing.
    Lower links are replaced with one arm. Drifting with higher steering angle the stiffness and packaging would become an issue. Therefore lower one piece arm is used.
  • Very good camber control and minimal bump steer with high steering angles.
    On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering.
    • Steering jacking control.
      During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry that it doesn’t cause any handling issues.
    • Consistent and predictable self-alignment torque.
      Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It’s the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn’t get stuck at full lock.

Kit includes:

  • Adjustable coilover upper mounts, Formula Drift compliance.
  • Knuckles with hardware.
  • Lower control arms.
  • Assembeled tie rods.
  • Rack offset kit.
  • Rack installation guide.
  • Installation guide.



Other components, packaging and clearance.

  • This kit assumes coilovers to have enough clearance.
  • Dependent on rim width and ET, wider fenders or fender flares would be needed.
  • With tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc) and lowered ride height the inner wheel wells need to be slightly modified.

Recommended backspacing is 135-140mm (7“ ET45; 8“ ET35; 9“ ET25).If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.

More Information
Make Nissan
Field Drift
Placement Front
Prodmaster Name V2 Drift Angle Lock Kit with Rack Offset Spacers
Wisefab fitment calculator
Make and Model
?
Fender Arch Height from Ground (mm)
Tire Width
Tire Height or Diameter
Rim Diameter
Rim Width
ET
Wheelspacer (mm)
Suspension selection
Suspension selection
OEM
WISEFAB
CUSTOM

1733 mm
1733 mm
Fender to Fender
1548 mm
1703 mm
Hub to Hub
-1 °
-4 °
Camber
7 °
4 °
Caster
-1 mm
-2 mm
Toe

Set your desired rim and tire parameters in our fitment calculator to have a better overview how Wisefab will transform your driftcar. Fender arch height is your indicator on ride height. Check the fitment and learn about missing fender gap before ordering widebody kit. In the custom section you can edit the fender to fender and wheelhub to wheelhub measurments according to your driftcar. Use the max width to check if your car will fit on your trailer. Have fun with this fitment calculator.

Wisefab Nissan 240sx
"’We started working together with Wisefab back in 2014 when we launched our Falken Tyres Nissan 240sx for European competition. Since then, we have enjoyed working closely with the engineers at Wisefab testing new products before going into production and have had a lot of success winning multiple championship worldwide. Thank you to everyone at Wisefab for believing in us and producing such top-quality products."
Nissan 240sx Drift
“When I first installed a Wisefab lock kit it truly opened the door for some more aggressive driving style. I quickly began to expect nothing less than the massive angle and performance that Wisefab provides and installed a lock kit on all (4) of my Nissan 240sx that I currently drift. Also, after testing what I though was a very competitive rear suspension solution against the latest Wisefab rear kit, I was blown away with the apparent grip gain the rear Wisefab kit yielded. I am so thankful that Wisefab has poured so much effort into creating a bolt on suspension solution that transforms a Nissan 240sx into what I believe is still the most competitive drift chassis in the world."
Nissan 240sx Lock kit
"I love the Wisefab suspension kits used on my competition and demo vehicles, they provide all the angle and grip we love along with the strength and durability we need to compete with the best!"
Toyota 86 Drift
"I wouldn't have half the results! Only by running Wisefab in my Toyota 86 it just makes the car handle so good and let's me adjust set up pretty easy which is a massive help going from track to track!"

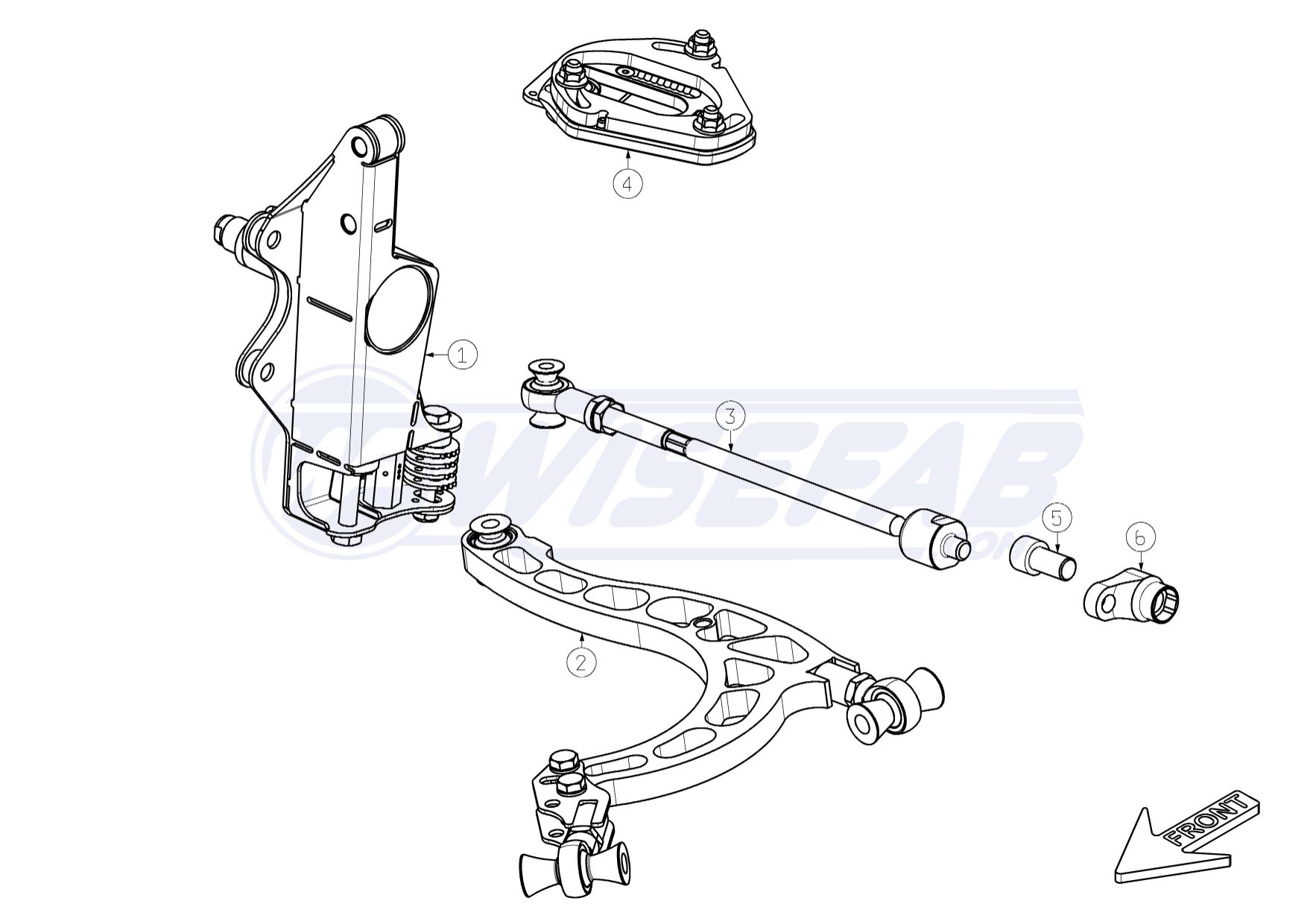

Spare parts

All
Complete parts
Left V2 Knuckle
Right V2 Knuckle
V2 Lower Control Arm
V2 Tie Rod Assembly
Left V2 Top Mount
Right V2 Top Mount
Bolt Allen M16x1.0x 30 RH 12.9 ZN D912
Left V2 Rack Offset Spacer
Right V2 Rack Offset Spacer

Complete parts

Complete parts

1
V2 Knuckle
Left
WF140_100LA
Special Price $351.00 Regular Price $390.00
excluding VAT
Right
WF140_100RA
Special Price $351.00 Regular Price $390.00
excluding VAT
2
V2 Lower Control Arm
WF140_200A
Special Price $364.50 Regular Price $405.00
excluding VAT
3
V2 Tie Rod Assembly
WF140_600A
Special Price $81.00 Regular Price $90.00
excluding VAT
4
V2 Top Mount
Left
WF140_500LA
Special Price $130.50 Regular Price $145.00
excluding VAT
Right
WF140_500RA
Special Price $130.50 Regular Price $145.00
excluding VAT
5
Bolt Allen M16x1.0x 30 RH 12.9 ZN D912
WF013_913
Special Price $14.40 Regular Price $16.00
excluding VAT
6
V2 Rack Offset Spacer
Left
WF140_801L
Special Price $58.50 Regular Price $65.00
excluding VAT
Right
WF140_801R
Special Price $58.50 Regular Price $65.00
excluding VAT

Left V2 Knuckle

Left V2 Knuckle

1
V2 Knuckle
Left
WF140_100LA
Special Price $351.00 Regular Price $390.00
excluding VAT
2
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
Special Price $1.71 Regular Price $1.90
excluding VAT
3
Ackermann Washer Round 0 offset
WF013_140
Special Price $8.19 Regular Price $9.10
excluding VAT
4
Ackermann Washer Round 3 Offset
WF080_142
Special Price $8.19 Regular Price $9.10
excluding VAT
5
Ackermann Washer Round 6 Offset
WF080_144
Special Price $8.19 Regular Price $9.10
excluding VAT
6
BushingT ID10 OD24 h10
WF901_905
Special Price $8.19 Regular Price $9.10
excluding VAT
7
Bolt Hex M10x1.5x 75 RH 10.9 ST DIN 931
B01110150075R3SD931
Special Price $3.15 Regular Price $3.50
excluding VAT
8
Bolt Hex M 8x1.25x 70 RH 8.8 ZN DIN 931
B01108125070R2ZD931
Special Price $1.71 Regular Price $1.90
excluding VAT
9
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF370_950
Special Price $12.60 Regular Price $14.00
excluding VAT
10
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
Special Price $1.71 Regular Price $1.90
excluding VAT
11
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
Special Price $7.11 Regular Price $7.90
excluding VAT
12
Washer Flat M12 ZN DIN125
B03112NAZD125
Special Price $1.71 Regular Price $1.90
excluding VAT
13
BushingT ID12 OD14 h28
WF013_918
Special Price $9.90 Regular Price $11.00
excluding VAT

Right V2 Knuckle

Right V2 Knuckle

1
V2 Knuckle
Right
WF140_100RA
Special Price $351.00 Regular Price $390.00
excluding VAT
2
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
Special Price $1.71 Regular Price $1.90
excluding VAT
3
Ackermann Washer Round 0 offset
WF013_140
Special Price $8.19 Regular Price $9.10
excluding VAT
4
Ackermann Washer Round 3 Offset
WF080_142
Special Price $8.19 Regular Price $9.10
excluding VAT
5
Ackermann Washer Round 6 Offset
WF080_144
Special Price $8.19 Regular Price $9.10
excluding VAT
6
BushingT ID10 OD24 h10
WF901_905
Special Price $8.19 Regular Price $9.10
excluding VAT
7
Bolt Hex M10x1.5x 75 RH 10.9 ST DIN 931
B01110150075R3SD931
Special Price $3.15 Regular Price $3.50
excluding VAT
8
Bolt Hex M 8x1.25x 70 RH 8.8 ZN DIN 931
B01108125070R2ZD931
Special Price $1.71 Regular Price $1.90
excluding VAT
9
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF370_950
Special Price $12.60 Regular Price $14.00
excluding VAT
10
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
Special Price $1.71 Regular Price $1.90
excluding VAT
11
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
Special Price $7.11 Regular Price $7.90
excluding VAT
12
Washer Flat M12 ZN DIN125
B03112NAZD125
Special Price $1.71 Regular Price $1.90
excluding VAT
13
BushingT ID12 OD14 h28
WF013_918
Special Price $9.90 Regular Price $11.00
excluding VAT

V2 Lower Control Arm

V2 Lower Control Arm

1
V2 Lower Control Arm
WF140_200A
Special Price $364.50 Regular Price $405.00
excluding VAT
2
V2 Lower Control Arm Fixing
WF140_210A
Special Price $103.50 Regular Price $115.00
excluding VAT
3
Spacer ID14 OD16 h21
WF013_902
Special Price $9.90 Regular Price $11.00
excluding VAT
4
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
Special Price $29.70 Regular Price $33.00
excluding VAT
5
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
Special Price $3.15 Regular Price $3.50
excluding VAT
6
Spacer ID12 OD16 h10
WF013_903
Special Price $9.90 Regular Price $11.00
excluding VAT
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
Special Price $1.71 Regular Price $1.90
excluding VAT
8
Spherical ID16/OD32
SSPHERICAL 16/32
Special Price $27.90 Regular Price $31.00
excluding VAT

V2 Tie Rod Assembly

V2 Tie Rod Assembly

1
V2 Tie Rod Assembly
WF140_600A
Special Price $81.00 Regular Price $90.00
excluding VAT
2
Tie Rod Inner M14x1.5 M14x1.5 L360
STIEROD_M14_M14_L360
Special Price $23.40 Regular Price $26.00
excluding VAT
3
Spacer ID10 OD14 h11
WF013_901
Special Price $8.19 Regular Price $9.10
excluding VAT
4
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
Special Price $29.70 Regular Price $33.00
excluding VAT

Left V2 Top Mount

Left V2 Top Mount

1
V2 Top Mount
Left
WF140_500LA
Special Price $130.50 Regular Price $145.00
excluding VAT
2
Bolt Hex M10x1.5x 30 RH 10.9 ST DIN 933
B01110150030R3SD933
Special Price $3.15 Regular Price $3.50
excluding VAT
3
Camber Plate Spherical Housing REG
WF013_917A
Special Price $58.50 Regular Price $65.00
excluding VAT
4
Pin Spring 6x10 Normal ST DIN1481
B05206010NSD1481
Special Price $1.71 Regular Price $1.90
excluding VAT
5
V2 Top Mount Spacer Plate
WF140_503
Special Price $27.90 Regular Price $31.00
excluding VAT
6
Nut Hex Flange M10x1.5 RH 8.8 ZN
B02510150R2ZD69238
Special Price $3.15 Regular Price $3.50
excluding VAT
7
Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
B01306100016R2SD7991
Special Price $1.71 Regular Price $1.90
excluding VAT

Right V2 Top Mount

Right V2 Top Mount

1
V2 Top Mount
Right
WF140_500RA
Special Price $130.50 Regular Price $145.00
excluding VAT
2
Bolt Hex M10x1.5x 30 RH 10.9 ST DIN 933
B01110150030R3SD933
Special Price $3.15 Regular Price $3.50
excluding VAT
3
Camber Plate Spherical Housing REG
WF013_917A
Special Price $58.50 Regular Price $65.00
excluding VAT
4
Pin Spring 6x10 Normal ST DIN1481
B05206010NSD1481
Special Price $1.71 Regular Price $1.90
excluding VAT
5
V2 Top Mount Spacer Plate
WF140_503
Special Price $27.90 Regular Price $31.00
excluding VAT
6
Nut Hex Flange M10x1.5 RH 8.8 ZN
B02510150R2ZD69238
Special Price $3.15 Regular Price $3.50
excluding VAT
7
Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
B01306100016R2SD7991
Special Price $1.71 Regular Price $1.90
excluding VAT

Bolt Allen M16x1.0x 30 RH 12.9 ZN D912

Bolt Allen M16x1.0x 30 RH 12.9 ZN D912

1
Bolt Allen M16x1.0x 30 RH 12.9 ZN D912
WF013_913
Special Price $14.40 Regular Price $16.00
excluding VAT

Left V2 Rack Offset Spacer

Image currently unavailable

Left V2 Rack Offset Spacer

1
V2 Rack Offset Spacer
Left
WF140_801L
Special Price $58.50 Regular Price $65.00
excluding VAT

Right V2 Rack Offset Spacer

Image currently unavailable

Right V2 Rack Offset Spacer

1
V2 Rack Offset Spacer
Right
WF140_801R
Special Price $58.50 Regular Price $65.00
excluding VAT
