BMW E90 E92 E81 E82 Front Narrow Drift Angle Lock Kit

$1,310.00
excluding VAT
In stock
SKU
WF900N
or View Spares

The Wisefab Narrow Angle Kit for the BMW E9X and E8X models offers a perfect balance between street usability and drift performance. This kit features a more compact track width, making it ideal for builds where keeping the car streetable or avoiding wide overfenders is a priority.

Despite its narrower design, the kit delivers serious angle — up to 55 degrees of steering lock — along with Wisefab’s signature geometry improvements for precise handling and maximum control. It’s the go-to choice for drivers who want high-performance steering without going full competition spec.

NB! This kit does not fit with M3 knuckles.

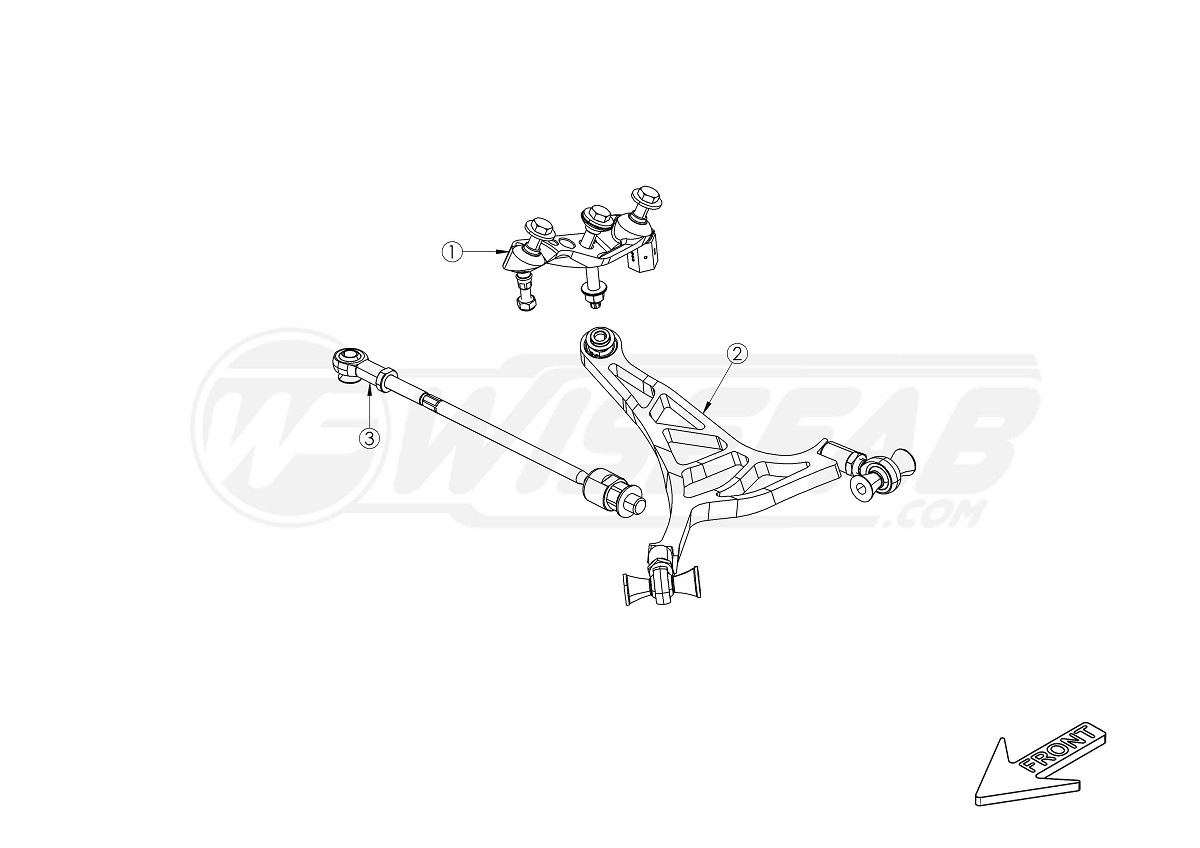

Kit includes:

  • Knuckle add-ons with hardware.
  • Lightweight one-piece lower control arms.
  • Assembled tie rods.
  • Installation guide

Useful information:

  • This kit does not fit with M3 knuckles.
  • This kit is recommended to be used with the coilovers to have enough clearance.
  • Depending on your wheel spec some mild fender-flares might be needed with this kit.
  • Perfect fit under OE E9X fender with 18x8" ET35 wheel (225/40 R18)

Recommended setup:

  • Camber: -5.5 degrees
  • Caster: 9 degrees
  • Toe: 2mm toe-out
More Information
Make BMW
Field Drift
Placement Front
Prodmaster Name Narrow Drift Angle Lock Kit

Spare parts

All
Complete parts
Left Knuckle Add-on
Right Knuckle Add-on
Left Narrow Lower Control Arm
Right Narrow Lower Control Arm
Tie Rod Assembly

Complete parts

Complete parts

1
Knuckle Add-on
Left
WF900N_100LA
$340.00
excluding VAT
Right
WF900N_100RA
$340.00
excluding VAT
2
Narrow Lower Control Arm
Left
WF900N_200LA
$490.00
excluding VAT
Right
WF900N_200RA
$490.00
excluding VAT
3
Tie Rod Assembly
WF900N_600A
$115.00
excluding VAT

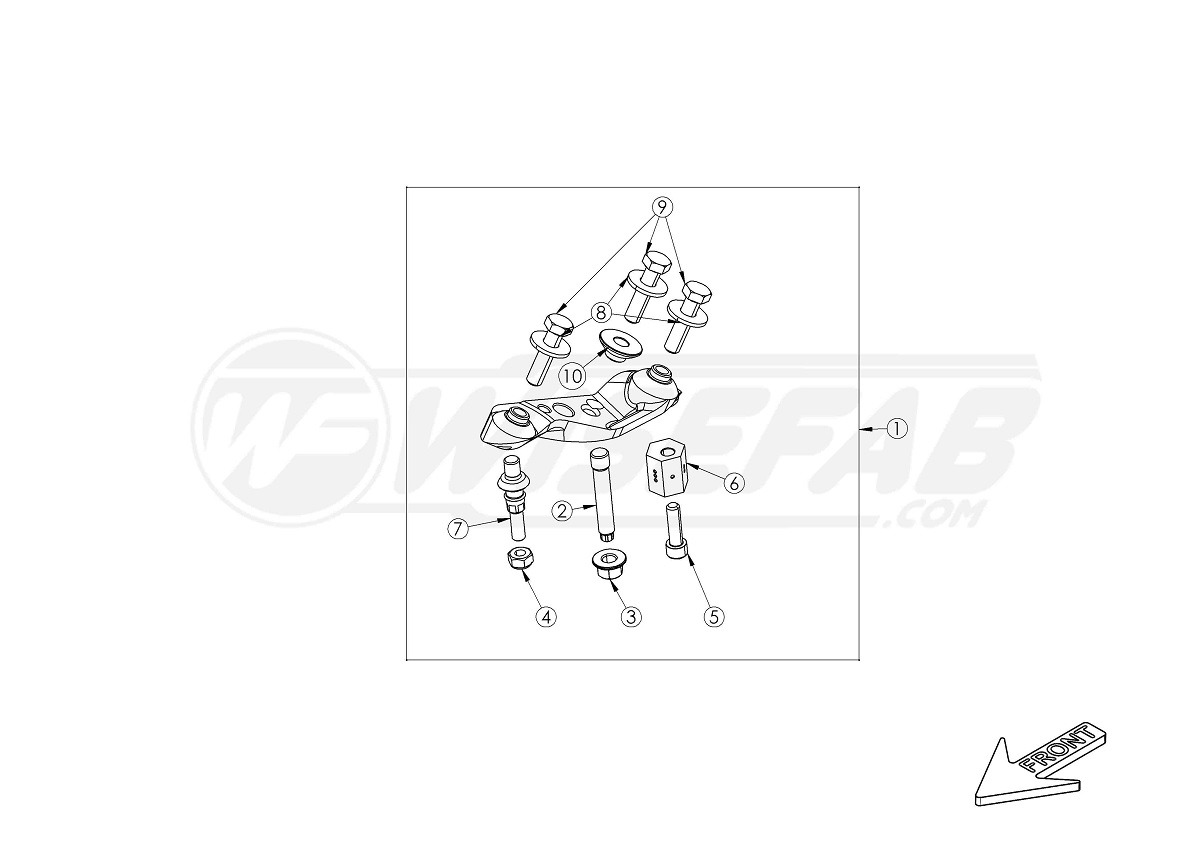

Left Knuckle Add-on

Left Knuckle Add-on

2
BMW E90 Narrow Control Arm Stud
WF900N_901
$33.00
excluding VAT
3
Nut Hex Flange Lock M12x1.5 RH 10.9 ZF
B02612150R3ZMBN13023
$4.50
excluding VAT
4
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$2.40
excluding VAT
5
Bolt Allen M10x1.5x 35 RH 12.9 ST DIN 912
B01210150035R4SD912
$2.40
excluding VAT
6
BushingT ID 10 OD27 h33 Excentric Lock Stopper
WF036_913
$30.00
excluding VAT
7
BMW E90 Narrow Tie Rod Stud
WF900N_902
$33.00
excluding VAT
8
Washer FlatLarge M12 ZN SFS3738
B03512ZSFS3738
$2.40
excluding VAT
9
Bolt Hex M12x1.5x 50 RH 10.9 ST DIN 961
B01112150050R3SD961
$6.80
excluding VAT
10
BMW E90 Narrow Washer Bushing
WF900N_904
$14.00
excluding VAT

Right Knuckle Add-on

Right Knuckle Add-on

2
BMW E90 Narrow Control Arm Stud
WF900N_901
$33.00
excluding VAT
3
Nut Hex Flange Lock M12x1.5 RH 10.9 ZF
B02612150R3ZMBN13023
$4.50
excluding VAT
4
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$2.40
excluding VAT
5
Bolt Allen M10x1.5x 35 RH 12.9 ST DIN 912
B01210150035R4SD912
$2.40
excluding VAT
6
BushingT ID 10 OD27 h33 Excentric Lock Stopper
WF036_913
$30.00
excluding VAT
7
BMW E90 Narrow Tie Rod Stud
WF900N_902
$33.00
excluding VAT
8
Washer FlatLarge M12 ZN SFS3738
B03512ZSFS3738
$2.40
excluding VAT
9
Bolt Hex M12x1.5x 50 RH 10.9 ST DIN 961
B01112150050R3SD961
$6.80
excluding VAT
10
BMW E90 Narrow Washer Bushing
WF900N_904
$14.00
excluding VAT

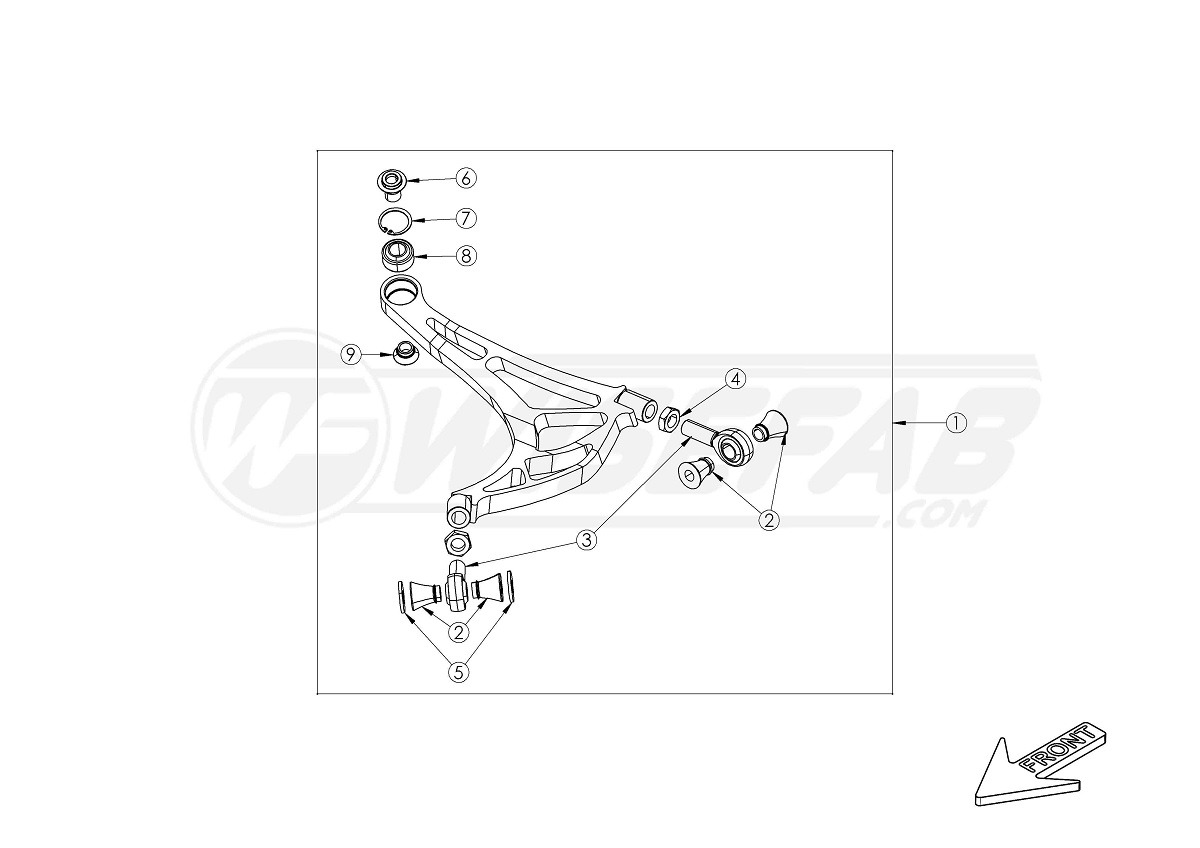

Left Narrow Lower Control Arm

Left Narrow Lower Control Arm

2
Spacer ID12 OD16 h24.5
WF900_902
$14.00
excluding VAT
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
$41.00
excluding VAT
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
$4.50
excluding VAT
5
Washer FlatLarge M12 ZN SFS3738
B03512ZSFS3738
$2.40
excluding VAT
6
Spacer ID12 OD16 h10 SPC
WF360_906
$14.00
excluding VAT
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$2.40
excluding VAT
8
Spherical ID16/OD32
SSPHERICAL 16/32
$40.00
excluding VAT
9
Spacer ID12 OD16 h7.5
WF360_905
$14.00
excluding VAT

Right Narrow Lower Control Arm

Right Narrow Lower Control Arm

2
Spacer ID12 OD16 h24.5
WF900_902
$14.00
excluding VAT
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
$41.00
excluding VAT
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
$4.50
excluding VAT
5
Washer FlatLarge M12 ZN SFS3738
B03512ZSFS3738
$2.40
excluding VAT
6
Spacer ID12 OD16 h10 SPC
WF360_906
$14.00
excluding VAT
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$2.40
excluding VAT
8
Spherical ID16/OD32
SSPHERICAL 16/32
$40.00
excluding VAT
9
Spacer ID12 OD16 h7.5
WF360_905
$14.00
excluding VAT

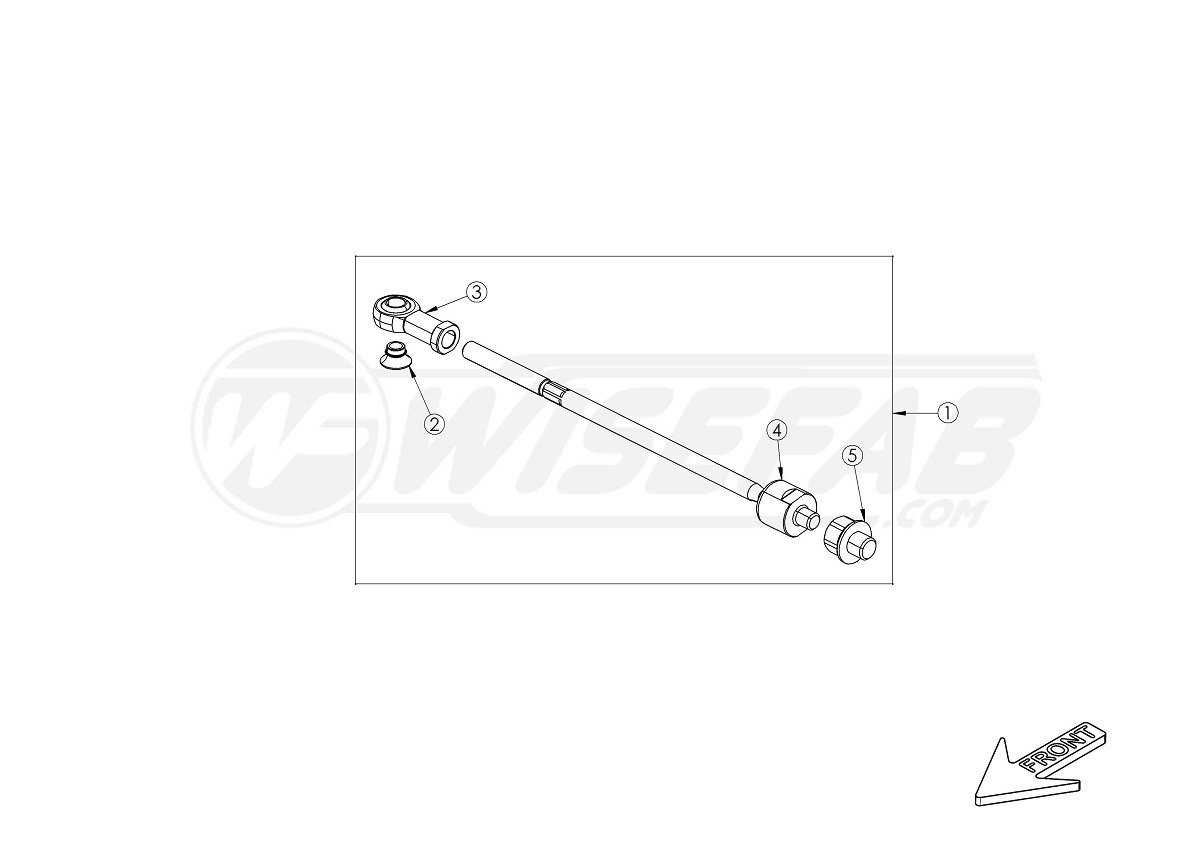

Tie Rod Assembly

Tie Rod Assembly

2
Spacer ID10 OD14 h 9
WF861_903
$12.00
excluding VAT
3
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
$41.00
excluding VAT
4
Tie Rod Inner M14x1.5 M14x1.5 L350
STIEROD_M14_M14_L350
$33.00
excluding VAT
5
Rack Extender M14x1.5 M18x1.5 L20
WF900_901
$36.00
excluding VAT
