For Toyota GT86, Wisefab has engineered a lightweight, super strong billet knuckle and lower control arm. Also relocated and replaced OEM electric steering rack with a hydraulic steering rack for a better response and feedback in racing. Kinematics has been revised for maximum sideways performance with adjustable Ackermann settings. Nissan S-Chassis hydraulic steering rack (50mm outer diameter) must be used with the kit to replace the original electric power steering. The kit includes an s-chassis steering rack attachment/cross-member insert and supports. To modify the cross-member some DIY cutting and welding must be done.
Want to know how does Wisefab Toyota GT86 Lock kit fit your drift car check the link CHECK FITMENT below or here!
62 degrees of lock, parallel steering You can tune your steering geometry towards positive Ackermann in just a few minutes even at trackside without messing up the alignment. Ackermann adjustment is included in the kit.
7 kg of weight reduction While still maintaining the required strength and stiffness.
7075-T6 aluminium Billet CNC knuckles and arms with optimized design and all double shear connections provide low weight and high strenght.
CrMo rod ends and sphericals used instead of OEM bushings
Higher roll center (RC) With our knuckle, the ball joint is lowered, which brings the front RC up on a lowered car, providing higher roll stiffness. This allows to remove the front anti roll-bar (sway bar) that is quite difficult to package with high lock angles.
Good camber control and minimal bump steer with high steering angles On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber will provide very good front grip and bump steer is minimal throughout the steering range.
Steering jacking control During drifting, when steering angle is increased, jacking is also bigger, even with the same geometry it could become a problem. We have changed the geometry in a way that doesn't cause any handling issues.
Consistent and predictable self-alignment torque. Caster is not the only important parameter to provide sufficient self-alignment torque, especially at high lock. It's the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn't get stuck at full lock.

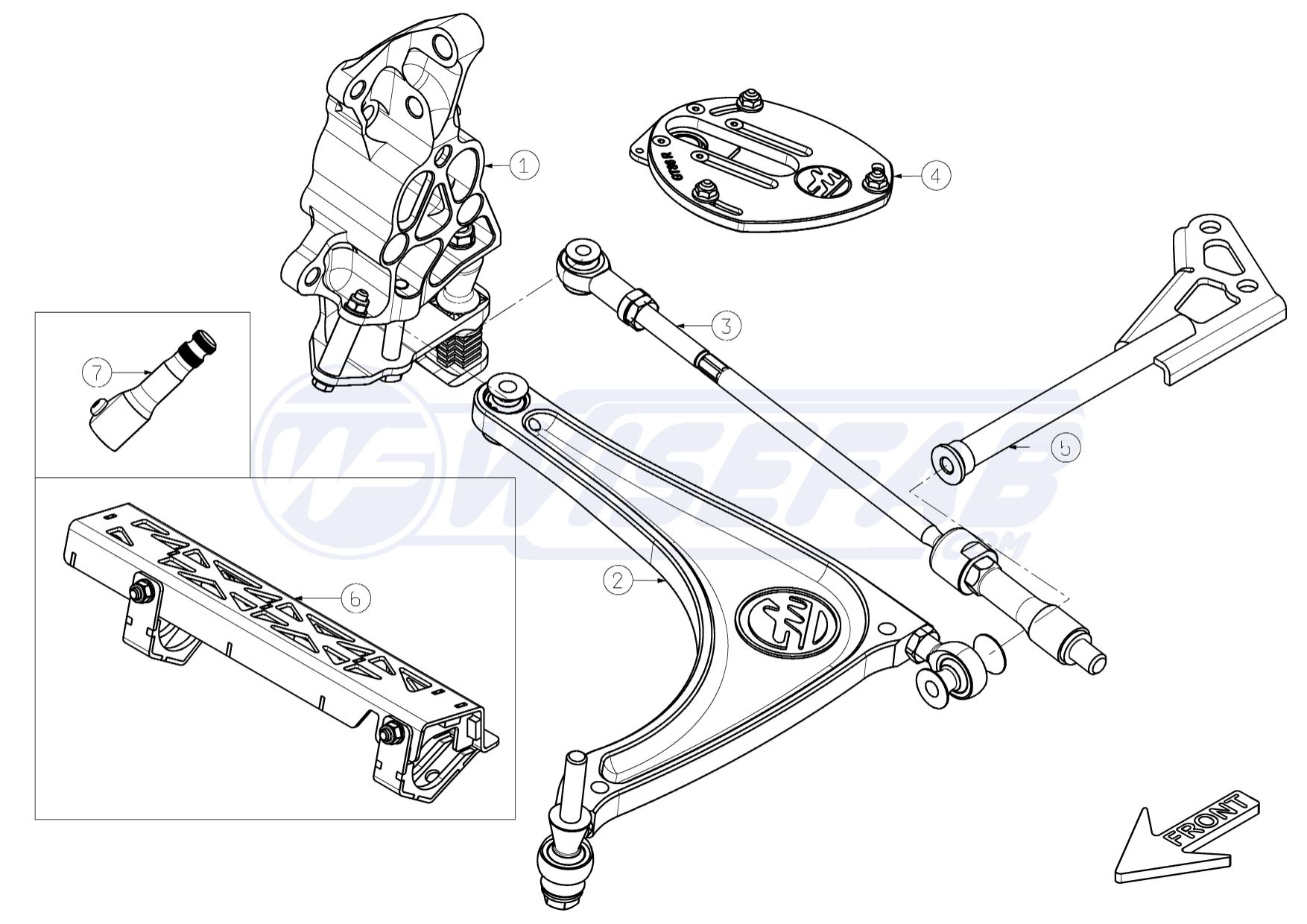

Kit includes:
Pre-set lower control arms
Knuckles with hardware
Assembeled tie rods
Pre-set coilover upper mounts
Rack relocating kit
Crossmember supports
Installation guide
Other information:
This kit assumes coilovers for enough clearance
Dependent on rim width and ET, wider fenders or fender flares are needed.
Due to extremely wide engine bay on Subaru BRZ, we recommend using tires no bigger than 605mm (215/40R17, 225/40R17, 215/35R18, 225/35R18)
With tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc) and lowered ride height the inner wheel wells need to be slightly modified.
Minimum rim size is 17“, but we recommend using 18“
Recommended backspacing is 135-140mm (7“ ET45; 8“ ET35; 9“ ET25). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
This calculator is fixed with the values specific to this particular product, car make and model. Full fitment calculator can be accessed here
Fender Arch Height from Ground (mm)
Tire Width
Tire Height or Diameter
Rim Diameter
Rim Width
ET
Wheelspacer (mm)
Suspension selection
Suspension selection
OEM
WISEFAB
CUSTOM
1772 mm
1772 mm
Fender to Fender
1548 mm
1695 mm
Hub to Hub
-1 °
-6 °
Camber
5 °
5 °
Caster
0 mm
-2 mm
Toe
Set your desired rim and tire parameters in our fitment calculator to have a better overview how Wisefab will transform your driftcar. Fender arch height is your indicator on ride height. Check the fitment and learn about missing fender gap before ordering widebody kit. In the custom section you can edit the fender to fender and wheelhub to wheelhub measurments according to your driftcar. Use the max width to check if your car will fit on your trailer. Have fun with this fitment calculator.
