Subaru BRZ Rear Suspension Drop Knuckle Kit

$2,650.00
excluding VAT
In stock
SKU
WF861
or View Spares

Toyota GT86 / Subaru BRZ / Scion FRS is a well designed car for enthusiast drivers. The car performs well on the streets and can be driven fast on a race track. If the focus is more towards performance, then the car will drive even better with lowered ride height, but then the factory designed kinematics won’t work as they are supposed to. Wisefab suspension kit brings the roll center, bumpsteer, anti-squat and camber curve back to normal range, provides better roll stiffness, handling and grip.

Read full description
  • -7 kg of combined weight saving over original components
    But still maintaining required strength and stiffness
  • 7075-T6 aluminium billet CNC knuckles
    With optimized double shear design that provides low weight and high strenght
  • All the rear links and arms are made of high strength steel
    CrMo rod ends and sphericals used instead of rubber bushings
  • Adjustable shock motion ratio
    Shock motion ratio can be adjusted by changing the shocks position on the arm. It can be done quickly and has the effect of changing the springrate. This means that understeer or oversteer can be removed within a few minutes
  • Easy camber adjustment
    Camber shims are used for adjustment
  • Bump steer adjustment
    Possibility to adjust bumpsteer by changing washer locations

Kit includes:

  • Pre-set suspension arms
  • Knuckles with hardware
  • Camber adjustment shims
  • Installation guide





Other information:

  • Track is the same as original, as this is defined by halfshaft lengths
  • This kit assumes coilovers
  • Original wheel speed sensor can be used
  • Possibility to use Nissan S-Chassis hub with bigger CV joint
  • Minimum rim size is 17“
More Information
Make Subaru
Field No
Placement Rear
Prodmaster Name Suspension Drop Knuckle Kit
color_swatch No

Spare parts

All
Complete parts
Left Knuckle
Right Knuckle
Suspension Arm #2
Left Suspension Arm #3
Right Suspension Arm #3
Suspension Arm #4
Suspension Arm #5

Complete parts

Complete parts

1
Knuckle
Left
WF861_100LA
$740.00
excluding VAT
Right
WF861_100RA
$740.00
excluding VAT
2
Suspension Arm #2
WF861_200A
$290.00
excluding VAT
3
Suspension Arm #3
Left
WF861_300LA
$375.00
excluding VAT
Right
WF861_300RA
$375.00
excluding VAT
4
Suspension Arm #4
WF861_400A
$215.00
excluding VAT
5
Suspension Arm #5
WF861_500A
$175.00
excluding VAT

Left Knuckle

Left Knuckle

1
Knuckle
Left
WF861_100LA
$740.00
excluding VAT
2
Knuckle Clevis
Left
WF861_102L
$125.00
excluding VAT
3
Hub Spacer Plate
WF861_103
$70.00
excluding VAT
5
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
$1.80
excluding VAT
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$1.80
excluding VAT
7
Bolt Allen M 8x1.25x 30 RH 12.9 ST DIN 912
B01208125030R4SD912
$1.80
excluding VAT
8
Washer Flat M 8 ZN DIN125
B03108NAZD125
$1.80
excluding VAT
9
Camber Adjustment Shim 1mm
WF861_106
$8.00
excluding VAT
10
Camber Adjustment Shim 2mm
WF861_105
$8.00
excluding VAT
11
Camber Adjustment Shim 3mm
WF861_104
$8.00
excluding VAT
12
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
B01112150060R3SD960
$5.00
excluding VAT
13
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
$1.80
excluding VAT
14
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
B01110150070R3SD931
$3.40
excluding VAT
15
Washer ID10 OD24.5 h 1
WF861_111
$8.00
excluding VAT
16
Washer ID10 OD24.5 h 2
WF861_112
$8.00
excluding VAT
18
Bolt Allen M 8x1.25x 25 RH 12.9 ST DIN 912
B01208125025R4SD912
$1.80
excluding VAT

Right Knuckle

Right Knuckle

1
Knuckle
Right
WF861_100RA
$740.00
excluding VAT
2
Knuckle Clevis
Right
WF861_102R
$125.00
excluding VAT
3
Hub Spacer Plate
WF861_103
$70.00
excluding VAT
5
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
$1.80
excluding VAT
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$1.80
excluding VAT
7
Bolt Allen M 8x1.25x 30 RH 12.9 ST DIN 912
B01208125030R4SD912
$1.80
excluding VAT
8
Washer Flat M 8 ZN DIN125
B03108NAZD125
$1.80
excluding VAT
9
Camber Adjustment Shim 1mm
WF861_106
$8.00
excluding VAT
10
Camber Adjustment Shim 2mm
WF861_105
$8.00
excluding VAT
11
Camber Adjustment Shim 3mm
WF861_104
$8.00
excluding VAT
12
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
B01112150060R3SD960
$5.00
excluding VAT
13
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
$1.80
excluding VAT
14
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
B01110150070R3SD931
$3.40
excluding VAT
15
Washer ID10 OD24.5 h 1
WF861_111
$8.00
excluding VAT
16
Washer ID10 OD24.5 h 2
WF861_112
$8.00
excluding VAT
18
Bolt Allen M 8x1.25x 25 RH 12.9 ST DIN 912
B01208125025R4SD912
$1.80
excluding VAT

Suspension Arm #2

Suspension Arm #2

1
Suspension Arm #2
WF861_200A
$290.00
excluding VAT
2
Spacer ID12 OD16 h10
WF013_903
$10.00
excluding VAT
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
$35.00
excluding VAT
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
$3.40
excluding VAT
5
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$1.80
excluding VAT
6
Spherical ID16/OD32
SSPHERICAL 16/32
$30.00
excluding VAT

Left Suspension Arm #3

Left Suspension Arm #3

1
Suspension Arm #3
Left
WF861_300LA
$375.00
excluding VAT
2
Spacer ID12 OD16 h19
WF861_901
$10.00
excluding VAT
3
Spherical ID16/OD32
SSPHERICAL 16/32
$30.00
excluding VAT
4
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$1.80
excluding VAT
5
Spacer ID12 OD16 h14.5
WF113_913
$10.00
excluding VAT
6
Spacer ID10 OD12 h10.5
WF113_902
$9.00
excluding VAT
7
C-Clip InternalSTD d26 ST DIN472
B04126SD472
$1.80
excluding VAT
8
Spherical ID12/OD26
SSPHERICAL 12/26
$30.00
excluding VAT

Right Suspension Arm #3

Right Suspension Arm #3

1
Suspension Arm #3
Right
WF861_300RA
$375.00
excluding VAT
2
Spacer ID12 OD16 h19
WF861_901
$10.00
excluding VAT
3
Spherical ID16/OD32
SSPHERICAL 16/32
$30.00
excluding VAT
4
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$1.80
excluding VAT
5
Spacer ID12 OD16 h14.5
WF113_913
$10.00
excluding VAT
6
Spacer ID10 OD12 h10.5
WF113_902
$9.00
excluding VAT
7
C-Clip InternalSTD d26 ST DIN472
B04126SD472
$1.80
excluding VAT
8
Spherical ID12/OD26
SSPHERICAL 12/26
$30.00
excluding VAT

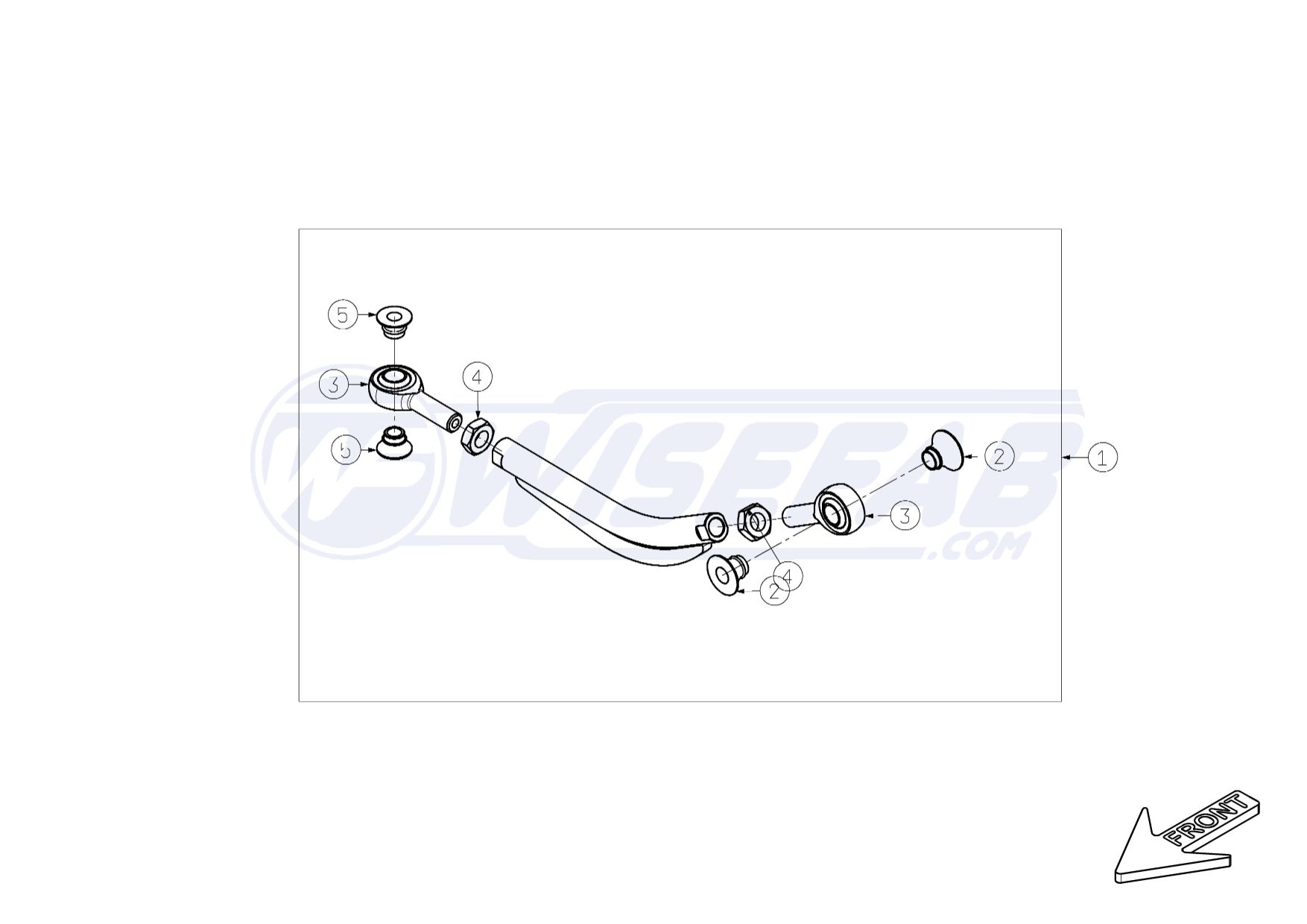

Suspension Arm #4

Suspension Arm #4

1
Suspension Arm #4
WF861_400A
$215.00
excluding VAT
2
Spacer ID12 OD14 h14
WF113_905
$10.00
excluding VAT
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
$25.00
excluding VAT
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
$3.40
excluding VAT
5
Spacer ID10 OD14 h 9
WF861_903
$9.00
excluding VAT

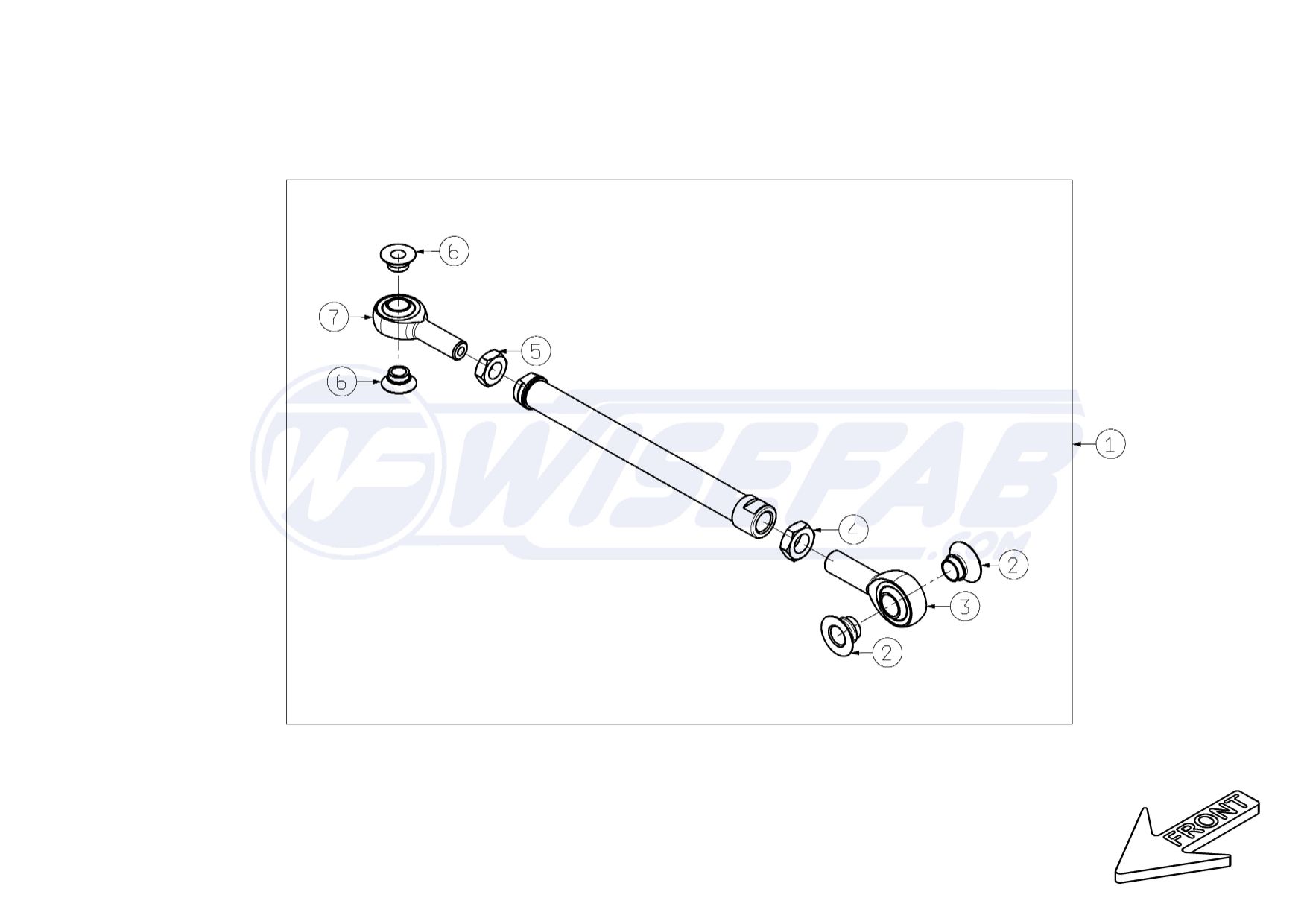

Suspension Arm #5

Suspension Arm #5

1
Suspension Arm #5
WF861_500A
$175.00
excluding VAT
2
Spacer ID14 OD16 h10
WF036_903
$10.00
excluding VAT
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
$35.00
excluding VAT
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
$3.40
excluding VAT
5
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
$3.40
excluding VAT
6
Spacer ID10 OD14 h 5.4
WF080_921
$9.00
excluding VAT
7
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
$25.00
excluding VAT
