Toyota GT86 Rear V2 MOD Kit

$750.00
excluding VAT
In stock
SKU
WF8611_MOD
or View Spares

This FD-legal subframe / knuckle mod kit is an optional addition to Wisefab V2 rear suspension that allows to get even more rear grip out of it.

More Information
Make Toyota
Field Drift
Placement Rear
Prodmaster Name V2 MOD Kit

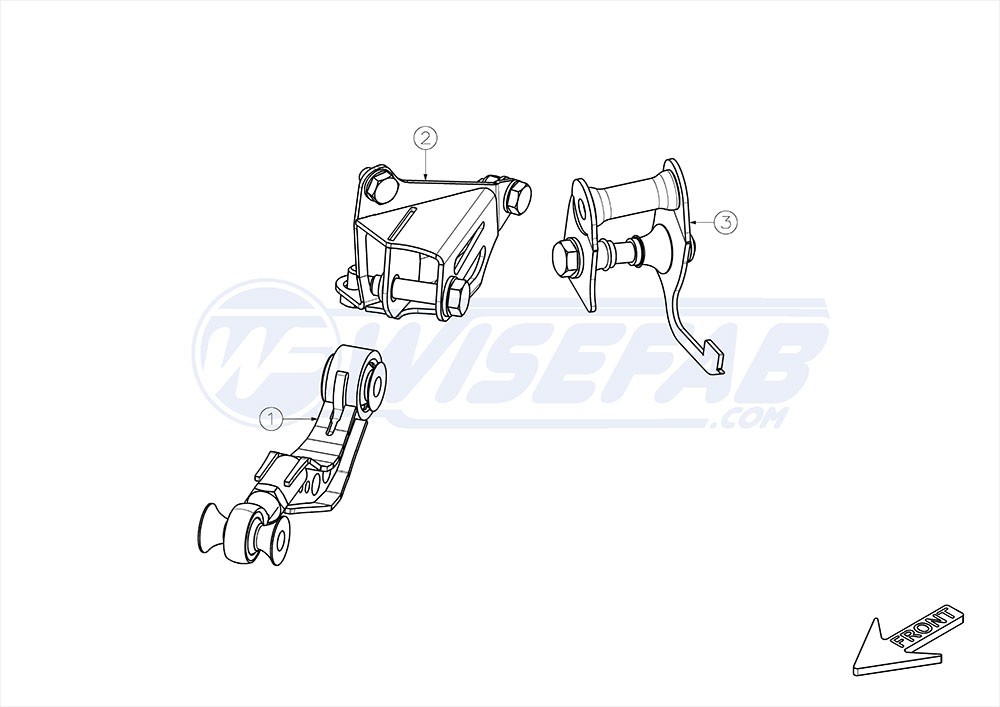

Spare parts

All
Complete parts
Suspension Arm #4
Left Knuckle Add-On
Right Knuckle Add-On
Left Subrame Add-On
Right Subframe Add-On

Complete parts

Complete parts

1
Suspension Arm #4
WF8611_700A
$365.00
excluding VAT
2
Knuckle Add-On
Left
WF8611_710LA
$195.00
excluding VAT
Right
WF8611_710RA
$195.00
excluding VAT
3
Subrame Add-On
Left
WF8611_720LA
$115.00
excluding VAT
3
Subframe Add-On
Right
WF8611_720RA
$115.00
excluding VAT

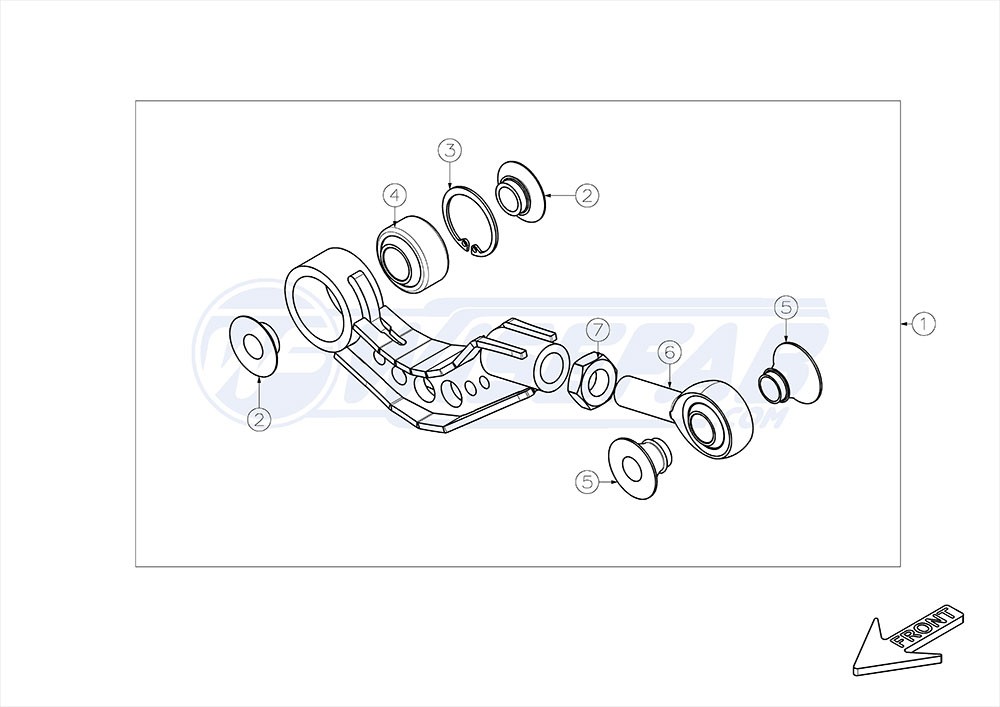

Suspension Arm #4

Suspension Arm #4

2
Spacer ID12 OD16 h 4.5
WF144_903
$13.00
excluding VAT
3
C-Clip InternalSTD d32 ST DIN472
B04132SD472
$2.30
excluding VAT
4
Spherical ID16/OD32
SSPHERICAL 16/32
$38.00
excluding VAT
5
Spacer ID12 OD14 h14
WF113_905
$13.00
excluding VAT
6
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
$31.00
excluding VAT
7
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
$4.30
excluding VAT

Left Knuckle Add-On

Left Knuckle Add-On

2
Washer Flat M12 ZN DIN125
B03112NAZD125
$2.30
excluding VAT
3
Bolt Hex M12x1.5x 50 RH 10.9 ST DIN 961
B01112150050R3SD961
$6.40
excluding VAT
4
Washer Flat M10 ZN DIN125
B03110NAZD125
$2.30
excluding VAT
5
Bolt Hex M10x1.5x 16 RH 10.9 ST DIN 933
B01110150016R3SD933
$2.30
excluding VAT
6
Bolt Hex M10x1.5x 25 RH 10.9 ST DIN 933
B01110150025R3SD933
$2.30
excluding VAT
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$2.30
excluding VAT

Right Knuckle Add-On

Right Knuckle Add-On

2
Washer Flat M12 ZN DIN125
B03112NAZD125
$2.30
excluding VAT
3
Bolt Hex M12x1.5x 50 RH 10.9 ST DIN 961
B01112150050R3SD961
$6.40
excluding VAT
4
Washer Flat M10 ZN DIN125
B03110NAZD125
$2.30
excluding VAT
5
Bolt Hex M10x1.5x 16 RH 10.9 ST DIN 933
B01110150016R3SD933
$2.30
excluding VAT
6
Bolt Hex M10x1.5x 25 RH 10.9 ST DIN 933
B01110150025R3SD933
$2.30
excluding VAT
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
$2.30
excluding VAT

Left Subrame Add-On

Left Subrame Add-On

5
Spacer ID12 OD16 h16.5
WF371_903
$13.00
excluding VAT
6
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
$9.40
excluding VAT
7
Washer Flat M12 ZN DIN125
B03112NAZD125
$2.30
excluding VAT
8
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
$2.30
excluding VAT

Right Subframe Add-On

Right Subframe Add-On

5
Spacer ID12 OD16 h16.5
WF371_903
$13.00
excluding VAT
6
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
$9.40
excluding VAT
7
Washer Flat M12 ZN DIN125
B03112NAZD125
$2.30
excluding VAT
8
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
$2.30
excluding VAT
