Front Lower Control Arm
$740.00
excluding VAT
In stock
SKU
WF452_200RA
| Field | Track |
|---|---|
| Placement | Front |
| Prodmaster Name | Lower Control Arm |

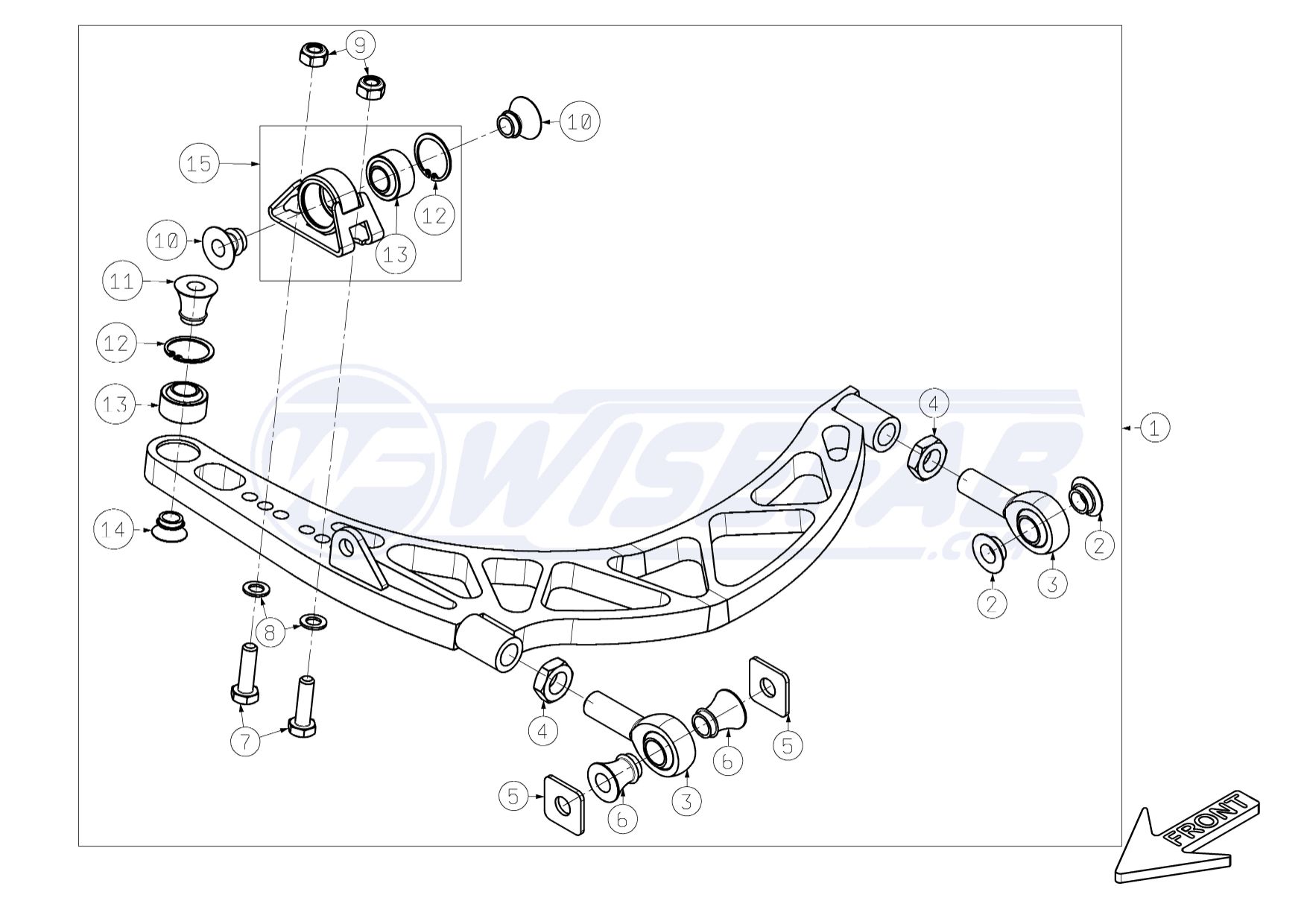

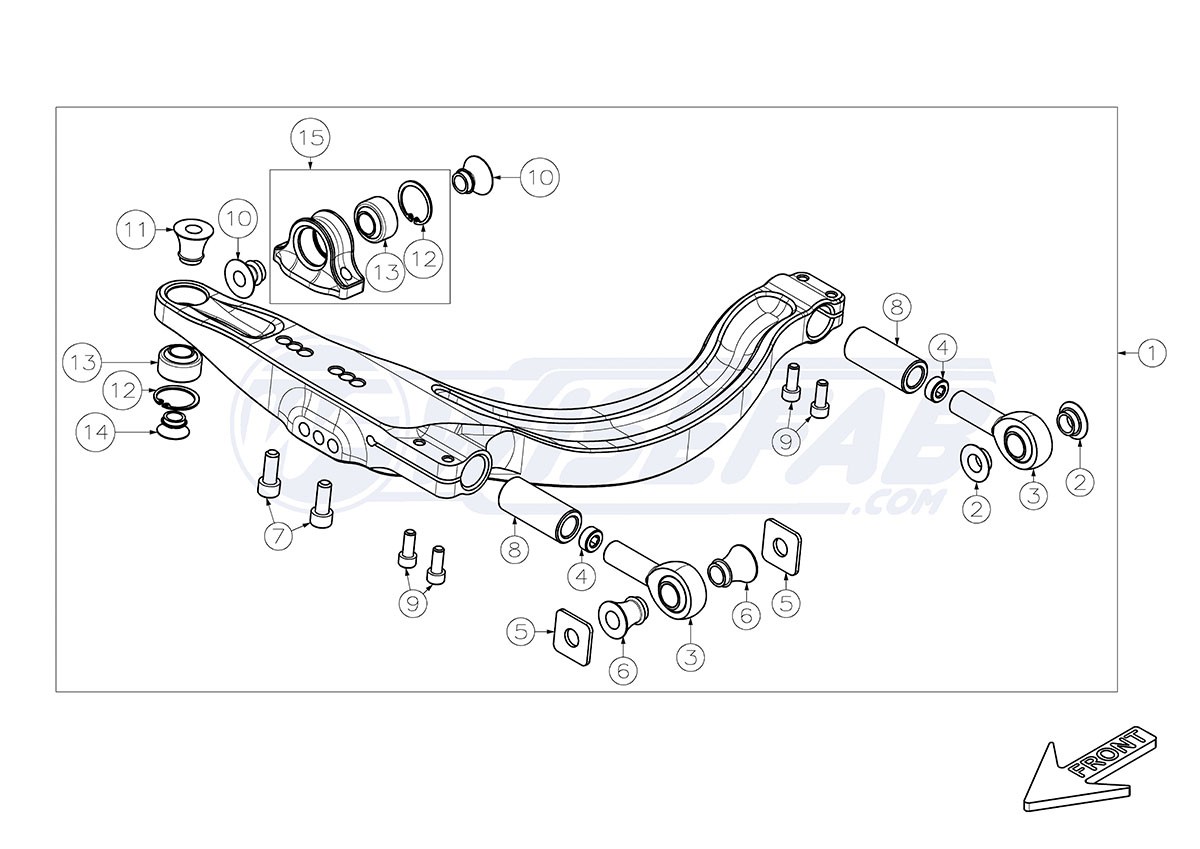

Spare parts
2
Spacer ID14 OD18 h 3.5
3
Rod end 18x1.5 RH male CrMo
4
Double Adjuster Locknut M18x1.5 Allen
5
WasherT 35x35x3
6
Spacer ID14 OD18 h23.5
7
Bolt Allen M10x1.5x 25 RH 12.9 ST DIN 912
8
Double Adjuster Female/Male M18x1.5 M27x1.5 Allen
9
Bolt Allen M 8x1.25x 20 RH 12.9 ST DIN 912
10
Spacer ID12 OD16 h11.9
11
Spacer ID12 OD16 h22
12
C-Clip InternalSTD d32 ST DIN472
13
Spherical ID16/OD32
14
Spacer ID12 OD16 h 8.5
15
Lower Control Arm Mount
Lower Control Arm Mount
Lower Control Arm Mount
2
Spherical ID16/OD32
3
C-Clip InternalSTD d32 ST DIN472
